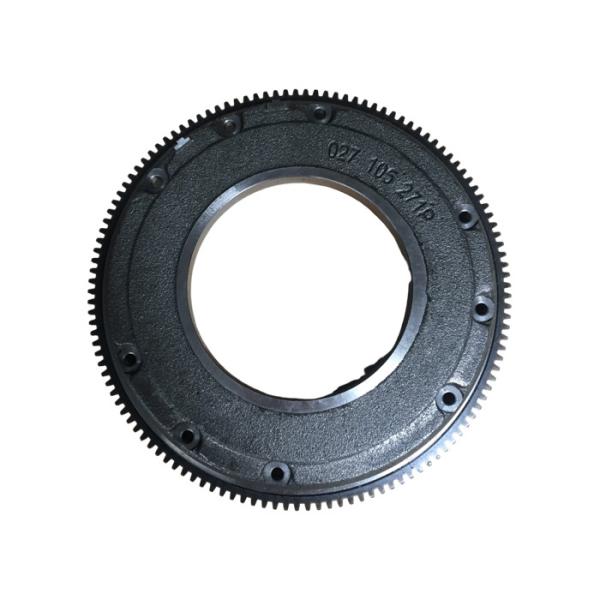

125 Teeth VW Jetta Flywheel Cast Iron Volkswagen Beetle Flywheel 027105271P

Specifications

Model Number :

VOLKSWAGEN/VW/Jeeta/027105271P/125 teeth/Beetle/cast iron flywheel

Certifiion :

IATF 16949

Place of Origin :

China

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

OE No. :

027105271P

Model :

VOLKSWAGEN/VW/Jeeta/027105271P/125 teeth/Beetle/cast iron flywheel

Height :

Material :

cast iron

Teeth :

125

Outer Diameter :

269

Description

VOLKSWAGEN/VW/Jetta/Jeeta/027105271P/125 teeth/Beetle/cast iron flywheel

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Principle

The flywheel's mass and inertia help to maintain a consistent rotational speed of the engine during the entire combustion cycle.
It acts as a mechanical energy reservoir, ensuring a continuous and reliable power supply to the drivetrain.
The stored energy in the flywheel is released during the engine's compression and exhaust strokes, compensating for the reduced power output during those phases.

Details

Teeth	125
For Coupling Size(mm)	213
Clutch Holes&Size (mm)
Outer Diameter	269
Inner Diameter(mm)	132
Height	65
Pitch Cride (mm)
Clutch Pitch Cride(mm)	219

Crafts

Machining
