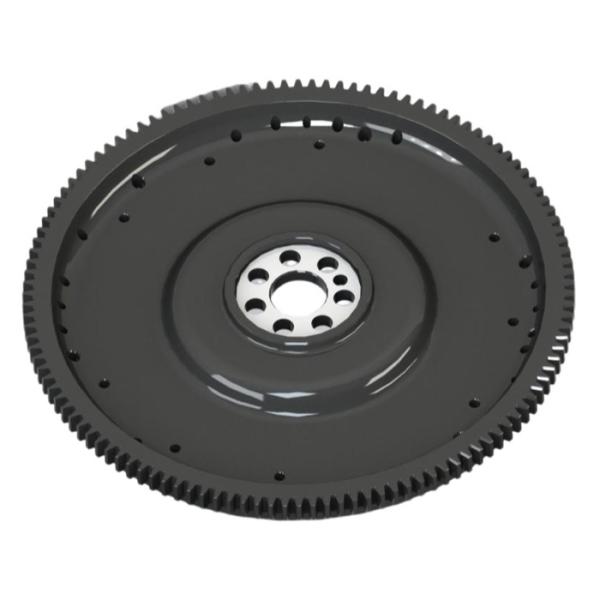

Steel Integrated Racing Flywheel 122 Tooth Cast Iron Modified Car Flywheel

Specifications

Certifiion :

IATF 16949

Place of Origin :

China

Model Number :

modified car flywheel/122 tooth flywheel

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

Model :

modified car flywheel/122 tooth flywheel

Height :

36.3

Material :

cast iron

Teeth :

122

Outer Diameter :

371.7

Description

Steel integrated flywheel/racing flywheel/modified car flywheel/122 tooth flywheel

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Principle

It is typically replaced or inspected during routine maintenance or when symptoms such as abnormal noises, excessive vibrations, or starter motor engagement issues arise. The flexplate's teeth or ring gear on its outer edge mesh with the starter motor's gear, allowing the starter motor to engage and crank the engine during startup.

Details

Teeth	122
For Coupling Size(mm)	270/295/300
Clutch Holes&Size (mm)	7*14.5mm
Outer Diameter	371.7
Inner Diameter(mm)	38
Height	36.3
Pitch Cride (mm)	62
Clutch Pitch Cride(mm)	289/314/320

Crafts

Machining
