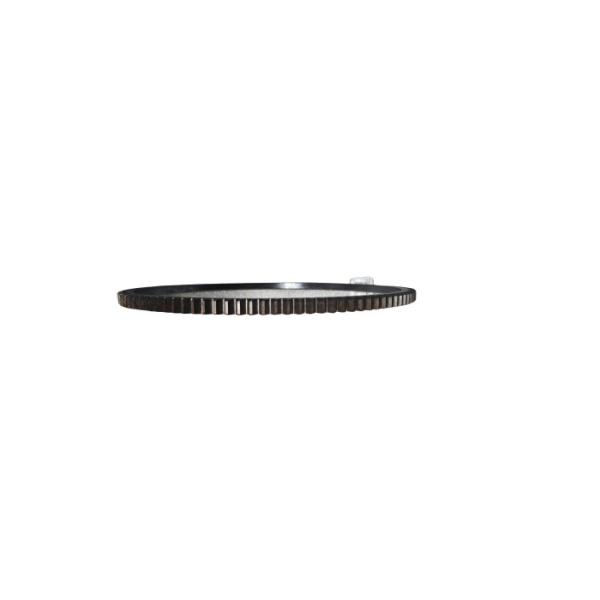

FORD TRANSİT V184 Flywheel Ring Gear 1C1Q-6375AA 1C1O6384AA 116 Teeth

Specifications

Certifiion :

IATF 16949

Place of Origin :

China

Model Number :

FORD TRANSİT V 184/1C1Q-6375AA/1C1O6384AA/116 teeth

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

Car Model :

FORD TRANSİT V 184/1C1Q-6375AA/1C1O6384AA/116 teeth

OEM :

1C1Q-6375AA/1C1O6384AA

Name :

RING GEAR

Crafts :

Normalising, Turning, Hobbing, Quenching, Tempering

Certified :

IAFTF16949

Teeth :

116

Description

Description

Please click to view RING GEAR alog!.xlsx

1. The ring gear part is made of standard 45# alloy steel and high-frequency quenching process. The hardness of the tooth part can reach 48-58HRC, which makes the product more heat-resistant, wear-resistant and durable.

2. The ring gear's design and tooth configuration may vary depending on the engine manufacturer, but its fundamental purpose remains the same. The engagement between the ring gear and pinion gear is a precise mechanical process that requires accurate alignment and synchronization.

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Teeth:	116
Outer Diameter	295.6mm
Inner Diameter(mm)	270mm
Height	10.3mm

Principle

When starting the car, the gear on the starter motor meshes with the ring gear on the starter flywheel and drives the flywheel to rotate. Because the flywheel is installed on the engine shaft, it drives the engine to rotate and the car starts.

Crafts

Normalising
