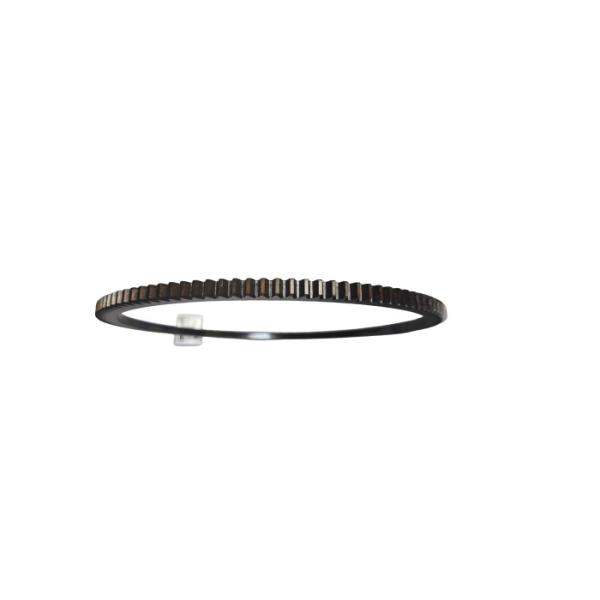

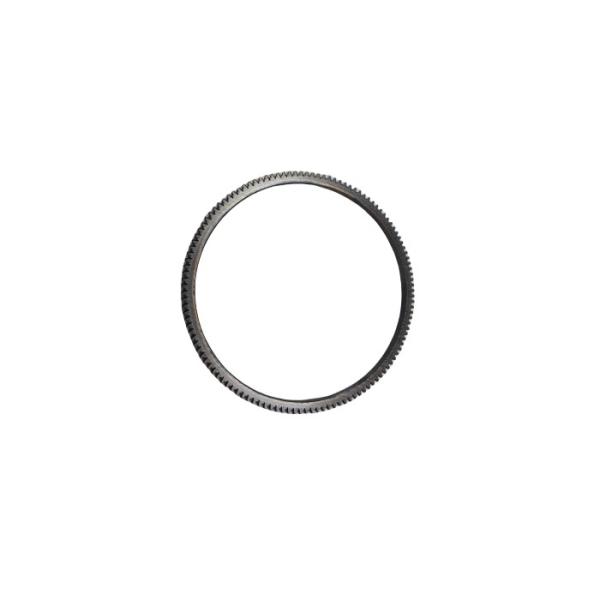

124 Teeth Flywheel Ring Gear Nissan QR25DE NV350 / 12310-3XM0A

Specifications

Certifiion :

IATF 16949

Place of Origin :

China

Model Number :

Nissan/QR25DE NV350/12310-3XM0A/124 teeth

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

Car Model :

Nissan/QR25DE NV350/12310-3XM0A/124 teeth

OEM :

QR25DE NV350/12310-3XM0A

Name :

RING GEAR

Crafts :

Normalising, Turning, Hobbing, Quenching, Tempering

Certified :

IAFTF16949

Teeth :

124

Description

Description

Please click to view RING GEAR alog!.xlsx

1. The ring gear part is made of standard 45# alloy steel and high-frequency quenching process. The hardness of the tooth part can reach 48-58HRC, which makes the product more heat-resistant, wear-resistant and durable.

2. Our company uses fully automatic CNC machine tools, machining centers, quenching machines and other equipment in the processing process to ensure better processing accuracy of the products, which can reach the dimensional accuracy of the original parts of the automobile factory, so that the sound of the products is smaller and more Stablize.

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Teeth:	124
Outer Diameter	316mm
Inner Diameter(mm)	284.8mm
Height	10mm

Principle

The teeth of the ring gear are designed to distribute the torque load evenly, minimizing stress concentration and potential tooth failure.

The ring gear's design and material are chosen to withstand the heat generated by the engine during operation without deformation.
The reliable engagement between the ring gear and pinion gear ensures consistent engine starting, contributing to the overall functionality and performance of the vehicle.

Crafts

Normalising
