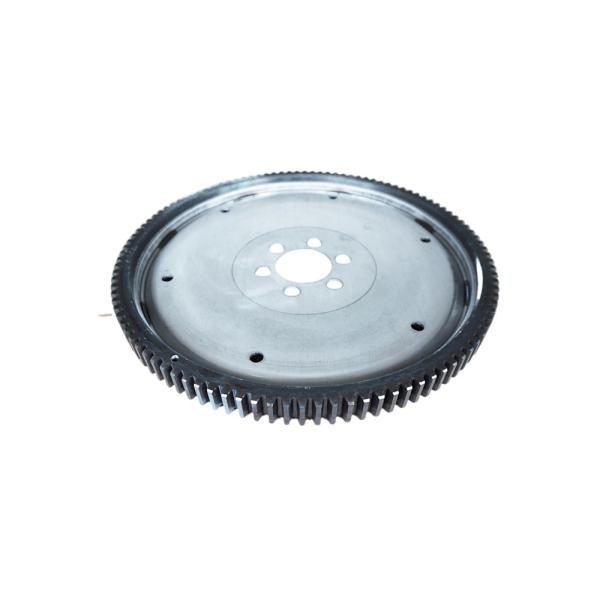

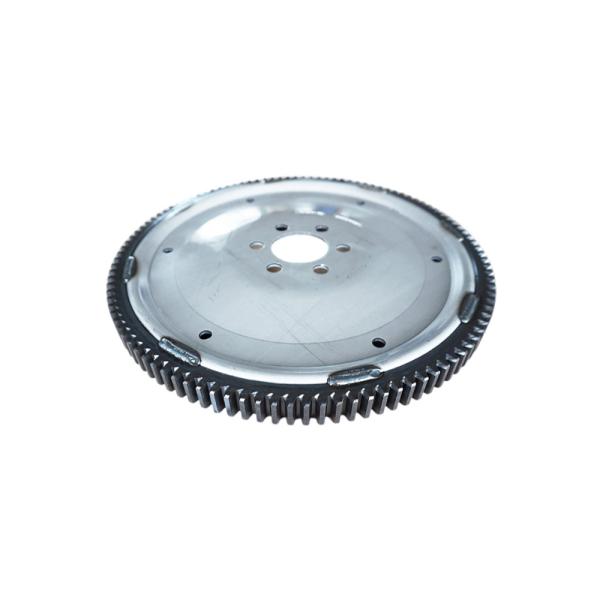

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm
Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm
Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm
Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm
Specifications
Certifiion :
IATF 16949
Place of Origin :
China
Model Number :
GM general/stamping flywheel/flexible disc flywheel/168 teeth
MOQ :
Negotiation
Price :
Negotiation
Packaging Details :
Standard Packaging
Payment Terms :
L/C,T/T,etc.
Model :
GM general/stamping flywheel/flexible disc flywheel/168 teeth
Height :
11.2
Material :
cast iron
Teeth :
168
Outer Diameter :
359
OEM :
168 teeth flywheel
Description

Forklift flywheel/stamping disc flywheel/flexible disc flywheel/168 tooth flywheel

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. The flexplate's working principle is closely integrated with the overall functionality of the automatic transmission system, ensuring reliable power transfer and efficient operation.

5. It plays a crucial role in the drivability, performance, and longevity of the vehicle, contributing to a smooth and reliable driving experience.

Principle

When starting a car, the gear on the starter motor meshes with the ring gear on the starter flywheel and drives the flywheel to rotate. Since the flywheel is installed on the engine shaft, it drives the engine to rotate and start the car.

Details

Teeth 168
For Coupling Size(mm) /
Clutch Holes&Size (mm) 6*12mm
Outer Diameter 359
Inner Diameter(mm) 53
Height 11.2
Pitch Cride (mm) 76.5
Clutch Pitch Cride(mm) 280

Crafts

Machining

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mmCast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm

Drilling Injection Holes

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mmCast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm

Dynamic Balance

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mmCast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm

Mark

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm

Package

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm

Inspection

Tension Test

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mmCast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm

Metallurgical Micro-Test

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mmCast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm

Hardness Test

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mmCast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm

3D Measuring

Cast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mmCast Iron Forklift Flywheel GM General 168 Tooth Flexplate OD 359mm
