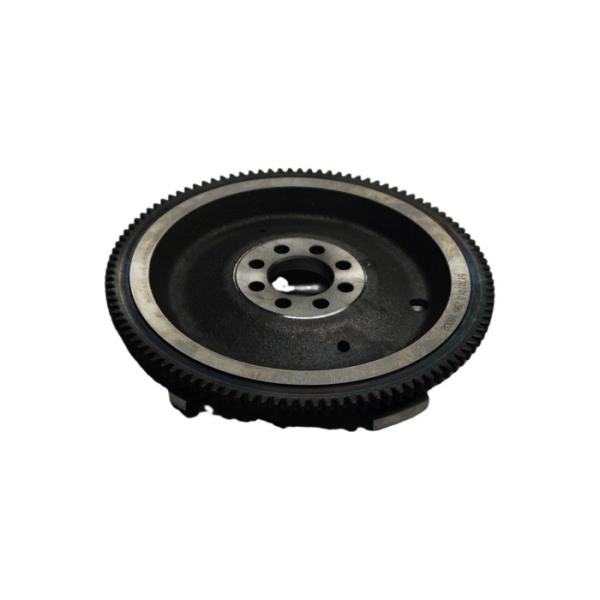

106 Teeth Car Flexplate 167143 88287 4160222100 LFW287 GM Pontiac Flywheel

Specifications

Model Number :

GM/pontiac/Toyota 1.6L/106 teeth cast iron flywheel

Certifiion :

IATF 16949

Place of Origin :

China

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

OE No. :

167143/88287/4160222100 /LFW287

Model :

GM/pontiac/Toyota 1.6L/106 teeth cast iron flywheel

Height :

32.4

Material :

cast iron

Teeth :

106

Outer Diameter :

271.4

Description

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Advantages

Durability and Strength: Flexplates are constructed to be durable and capable of withstanding the high torque and rotational forces generated by the engine.

Resistant to Wear: Flexplates are designed to withstand constant engagement with the starter motor's gear and the torque converter, ensuring long-lasting performance.

Details

Teeth	106
For Coupling Size(mm)	200
Clutch Holes&Size (mm)	8-Φ11mm
Outer Diameter	271.4
Inner Diameter(mm)	45
Height	32.4
Pitch Cride (mm)	67
Clutch Pitch Cride(mm)	250

Crafts

Machining
