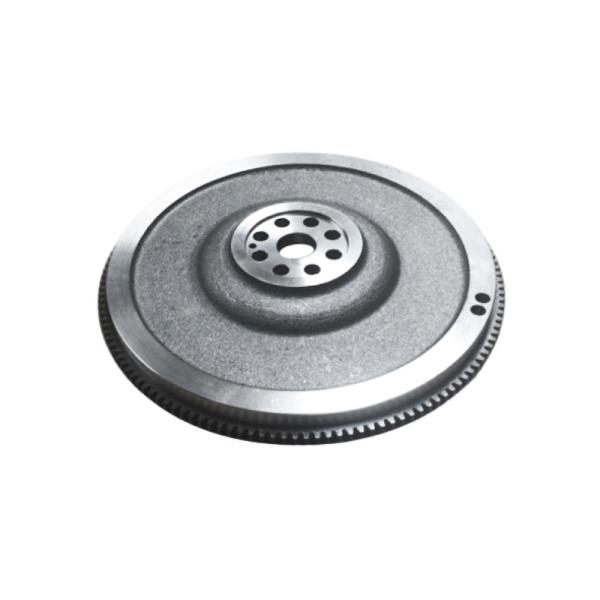

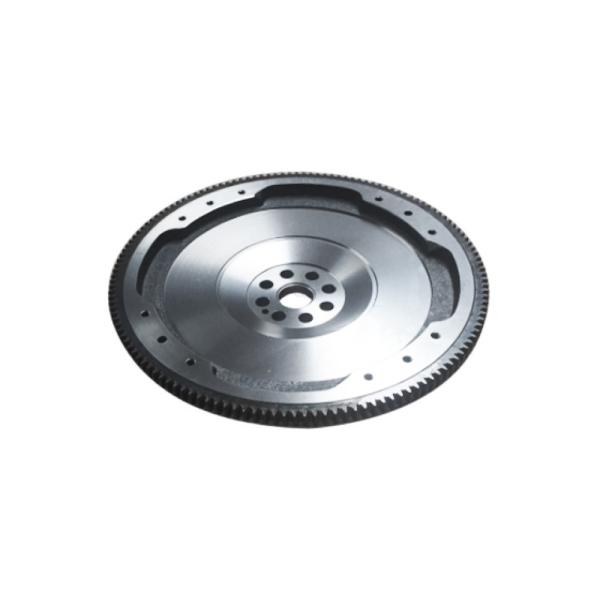

Cast Iron 138 Teeth Flywheel 8-97115-782-0 8-97115-782-1 For ISUZU 4HF1

Specifications

Model Number :

ISUZU/4HF1/138 teeth cast iron flywheel/Japanese truck flywheel

Certifiion :

IATF 16949

Place of Origin :

China

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

OE No. :

8-97115-782-0/1

Model :

ISUZU/4HF1/138 teeth cast iron flywheel/Japanese truck flywheel

Height :

55.5

Material :

Cast iron

Teeth :

138

Outer Diameter :

420

Description

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Advantage

Efficient Power Transfer: The flexplate allows for the smooth and efficient transfer of power from the engine to the transmission, ensuring optimal performance.

Reliable Engine Starting: The flexplate's ring gear engages with the starter motor, enabling reliable engine starting with every ignition attempt.

Details

Teeth	138
For Coupling Size(mm)	305
Clutch Holes&Size (mm)	8-Φ16.5
Outer Diameter	420
Inner Diameter(mm)	40
Height	55.5
Pitch Cride (mm)	80
Clutch Pitch Cride(mm)	350

Crafts

Machining
