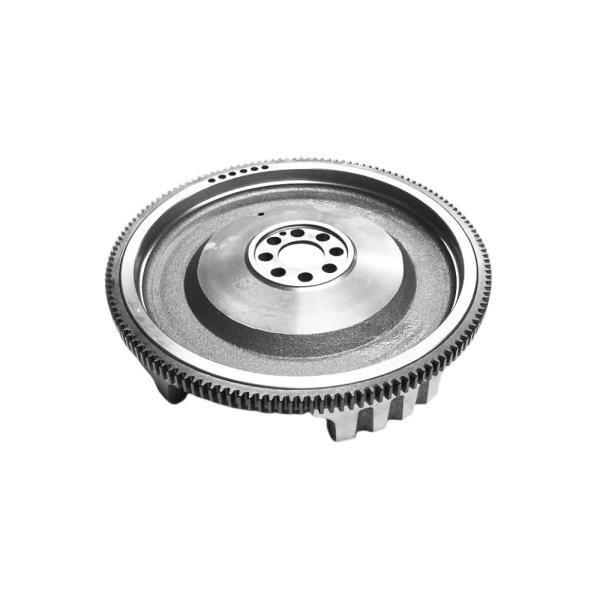

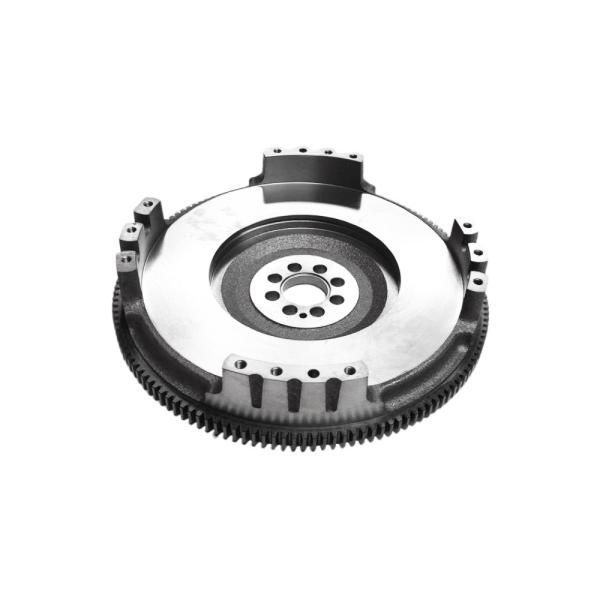

ISUZU 6HH1 Cast Iron Automatic Transmission Flexplate 140 Teeth For Heavy Truck

Specifications

Model Number :

ISUZU/6HH1/140 teeth cast iron flywheel/Japanese heavy truck flywheel

Certifiion :

IATF 16949

Place of Origin :

China

MOQ :

Negotiation

Price :

Negotiation

Packaging Details :

Standard Packaging

Payment Terms :

L/C,T/T,etc.

OE No. :

8-94390-872-0/1 /8-94395-519-2

Model :

ISUZU/6HH1/140 teeth cast iron flywheel/Japanese heavy truck flywheel

Height :

Material :

Cast iron

Teeth :

140

Outer Diameter :

426

Description

Description

Please click to view Flywheel alog!.pdf

1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

Advantage

Dampening of Vibrations: The flexplate absorbs and dampens engine vibrations, reducing the transmission of these vibrations to the rest of the vehicle and enhancing driving comfort.

Smooth Gear Changes: The flexplate's flexibility and ability to absorb torsional vibrations contribute to smoother gear changes in automatic transmissions.

Details

Teeth	140
For Coupling Size(mm)	355
Clutch Holes&Size (mm)	8-Φ16.5
Outer Diameter	426
Inner Diameter(mm)	52
Height	89
Pitch Cride (mm)	80
Clutch Pitch Cride(mm)	379

Crafts

Machining
