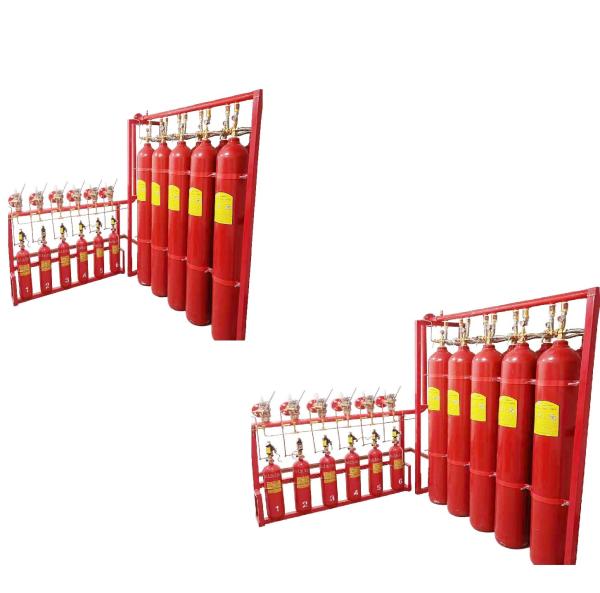

15MPa IG541 fire extinguishing system gas cylinder capacity 70L80L90L

Introduction to IG541 fire extinguishing system

IG541 fire extinguishing system is a mixture of 52% nitrogen, 40% oxygen and 8% carbon dioxide in a physical way. When sprayed into the protected area, it will reduce the oxygen concentration in the protected area to 12.5% ​​which cannot support combustion in a short time, and produce a suffocating effect on combustion to achieve fire extinguishing. On the other hand, according to long-term medical experiments, when the human body breathes in an environment with an oxygen concentration of 12.5% ​​and a carbon dioxide concentration of 2~5%, the amount of oxygen obtained by the brain is consistent with the amount of oxygen obtained in the normal atmospheric environment. The 8% carbon dioxide gas in the IG541 fire extinguishing system is to artificially increase the carbon dioxide concentration in the protected area to 2~5% required for breathing in an oxygen-deficient environment without causing harm to the human body. The 40% xenon gas is mainly used to accelerate the diffusion and mixing of the mixed gas in the protected area to ensure a uniform degree of fire extinguishing in the protected area.

System composition The IG541 gas fire extinguishing equipment provided by our company adopts total flooding fire extinguishing method, which can usually be divided into the following two forms:

(1) Unit independent IG541 fire extinguishing system (Figure 1): A set of IG541 fire extinguishing agent storage device corresponds to a set of pipe network system to protect a protected area.

(2) Combined distribution type IG541 fire extinguishing system (Figure 2): A common IG541 fire extinguishing agent storage device corresponds to several pipe network systems to protect multiple protection zones.

1. Fire extinguishing agent bottle bracket. 2. Fire extinguishing agent bottle group. 3. Connect the pipes. 4. Fire extinguishing agent circulation pipeline one-way valve. 5. Safety release device. 6. Collecting pipe. 7. Control the trachea. 8. Signal feedback device. 9. Pressure reducing device. 10. Select the valve. 11. Drive the one-way valve of the gas flow pipeline. 12. Low leakage and high sealing valve. 13. Drive the gas bottle assembly bracket. 14. Nitrogen drives the gas cylinder assembly. 15. Fully submerged nozzle.

Overall dimensions and performance parameters of IG541 fire extinguishing agent bottle group

Company introduction:

Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.

Frequently asked questions:

Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.

Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.

Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
