FM200 Gas Fire Extinguisher With Double Red Cylinders
FM200 Gas Fire Extinguisher With Double Red Cylinders
Specifications
Brand Name :
xingjin
Model Number :
GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
Certification :
CAL,CMA,CNAS,ILAC-MRA,CCC
Place of Origin :
China
MOQ :
1set system
Price :
negotiation
Payment Terms :
L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card
Supply Ability :
3,00 set per month
Delivery Time :
10-15 working days after payment or receipt of L/C
Packaging Details :
Plywood case,Paper carton
model of cabinet :
double cabinet
volume of cylinder :
40L, 70L, 90L, 100L, 120L, 150L, 180L
Capacity of Gas :
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg
Working pressure :
2.5MPa
Pattern of extinguishing :
Enclosed flooding
Agent :
HFC-227ea(FM200)
Actuation :
Automatic or manual
Discharge Time :
≤10s
Description

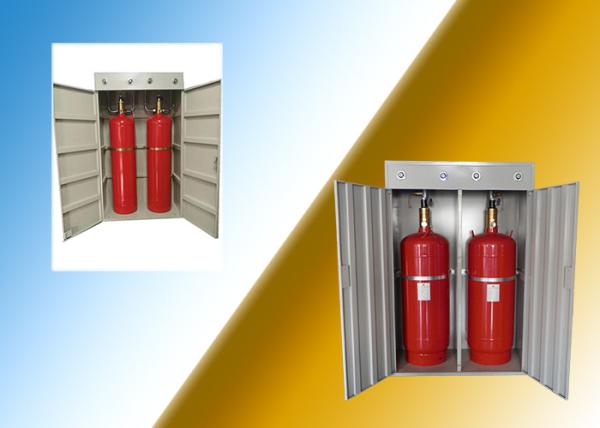

FM200 Gas Fire Extinguisher with Double Red Cylinders

Description:

FM200 clean gas automatic fire extinguishing system is very suitable for protection of electrical, magnetic media, documents, or high value of collection and equipment, and the protected objects without damage, without leaving any residue after fire, do not interrupt the daily work of protected areas.

Parameter:

NO. Specifications Parameters
1 Cylinder capacity 40Ltr,70Ltr,90Ltr,100Ltr,
120Ltr,150Ltr,180Ltr
2 Device model GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
3 Filling pressure 2.5MPa
4 Max filling rate 0.95kg/L
5 Discharge time ≤10s
6 Working temperature 0℃~50℃
7 Max working pressure 4.2MPa
8 Discharge pressure 5.6±0.28MPa
9 Proportion of protected zone ≤500m²
10 Volume of protected zone ≤1600m³
11 Actuation Automatic or manual start

Cabinet Size

Specification Size(mm) Volume(cbm) Net weight (kg)
GQQ40/2.5 500×450×1450 0.326 33
GQQ70/2.5 500×450×1450 0.326 43-50
GQQ90/2.5 500×450×1650 0.371 43-50(46)
GQQ100/2.5 500×450×1650 0.371 55-64(54)
GQQ120/2.5 550×550×1900 0.575 60-73(60)
GQQ150/2.5 550×550×1900 0.575 80
GQQ180/2.5 600×550×2150 0.71 80

Applications:

Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.

Competitive Advantage:

Cabinet fm200 fire suppression system - double-cabinet type : management of big zone, simple integration, direct spraying effect in protection zone, efficient fire suppression.

1. Effective firefighting in relatively small region

2. Simple assembly of device without pipeline

3. No extra space to store device

Compisitions:

The cabinet type fm200 fire suppression system is formed by:

1/ fm200 cylidner with fm200 fire agent

2/ container valve

3/ flexible hose

4/ solenoid actuator

5/ nozzle

6/ cabinet

FM200 Gas Fire Extinguisher With Double Red Cylinders
