Non Metallic Aerial Fiber Optic Cable GYFTY With Waterproof Performance
Non Metallic Aerial Fiber Optic Cable GYFTY With Waterproof Performance
Specifications
Brand Name :
Fiberplan
Model Number :
GYFTY
Certification :
ISO 9001; TÜV certificate
Place of Origin :
China
MOQ :
1Km
Price :
Negotiation
Payment Terms :
L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 km per month
Delivery Time :
5~8 work days
Packaging Details :
Wooden Drum
Application :
Telecommunication,Network
Fiber type :
G652B, G652D, G657A1, G657A2, single mode, multi mode
Jacket material :
PE,LSZH,PVC,TPU,LSZH or PVC
Structure :
Stranded loose tube
Length :
Standard length of cable shall be 2 km. Other cable length is also availabler
Cable Diamter :
9-16.5
Lead Time :
5 days
Fiber Count :
2-288 fibers
Loose Tube :
PBT loose Tube
Central Strength Member :
FRP
Laying Ways :
Pipeline/Overhead/Direct buried/Duct
Manufacturer :
Yes
Package :
Plywood drum
Rodent Protection :
Yes
Description

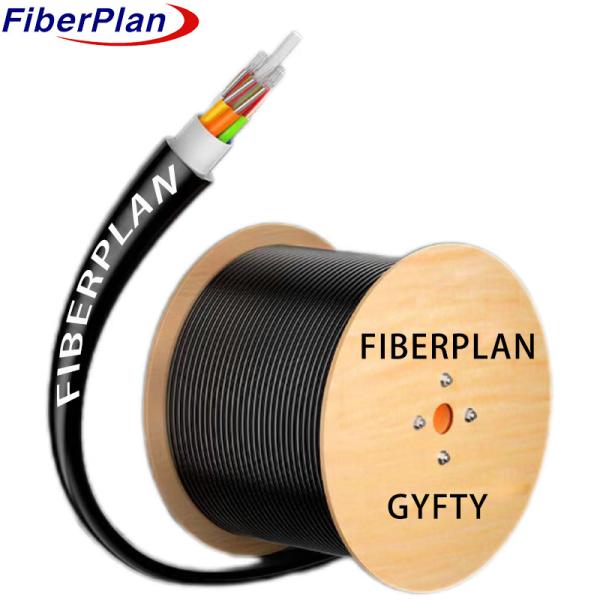

Non Metallic Aerial Fiber Optic Cable GYFTY With Waterproof Performance

Description

The fibers sit within a flexible tube made of durable plastic, filled with water-resistant compound. A non-metallic

Fiber Reinforced Plastic (FRP) at the core adds strength. Tubes and fillers encircle the FRP, creating a compact

circular core. Water-blocking tape shields the core, followed by a PE sheath for overall protection.

Application

1 Designed for outdoor distribution purposes.

2 Suitable for trunk power transmission systems.

3 Ideal for use in access and local networks situated in areas with high electromagnetic interference.

Characteristic

1 Exhibits strong mechanical performance across various temperatures.

2 Features a high-strength, hydrolysis-resistant loose tube.

3 Employs a specialized filling compound in the tube, ensuring critical fiber protection.

4 Demonstrates both crush resistance and flexibility.

5 Utilizes a filling compound specifically designed for the loose tube.

Structure details

No. of fiber 6F 12F 24F 36F 48F 72F 96F 144F
No. of tube 1 2 4 3 4 6 8 12
Fiber per tube 6 6 6 12 12 12 12 12
No. of filler rod 4 3 1 2 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Nom. out diameter (±0.2mm) 8.6 8.6 8.6 8.6 8.6 9.2 10.8 13.4
Nom. jacket thickness
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Black
Tube filling Material Filling compound
Central strength member Material FRP Diameter 1.5mm (6 - 48F)
2mm (72 - 144F)
Layer PE (for 96C -144C only)
Water blcoking system Material water blocking tape
Rip cord Type 1110*2
Out sheath Material MDPE Color Black

Mechanical and environment performance

Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term (N/100mm) 300N/100mm
Short term (N/100mm) 1000N/100mm
Bending radius Dynamic (mm) 20D
Static (mm) 10D
Storage Temperature -20℃～+70℃
Installation Temperature -10℃～+60℃

Fiber Performance

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.22 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±0.2 125±0.2 125±0.2
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±3 242±3 242±3
