Non Armored Fiber Optic Cable 4 To 24 Core GYFTY With Kevlar Yarn
Non Armored Fiber Optic Cable 4 To 24 Core GYFTY With Kevlar Yarn
Specifications
Brand Name :
Fiberplan
Model Number :
GYFTY
Certification :
ISO 9001; TÜV certificate
Place of Origin :
China
MOQ :
1Km
Price :
Negotiation
Payment Terms :
L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 km per month
Delivery Time :
5~8 work days
Packaging Details :
Wooden Drum
Laying Ways :
Pipeline/Overhead/Direct buried/Duct
Sheath :
PE
Cable Diamter :
9-16.5
Lead Time :
5 days
Strength Member :
FRP
FRP :
0.7/0.8/1.0mm/2.2mm
Fiber Count :
2-288 fibers
Manufacturer :
Yes
Rodent Protection :
Yes
Bending Radius :
20 x cable diameter
Cable Color :
Black
Packing :
2km/Wooden Drum or custimized
Water Blocking Tape :
Yes
Description

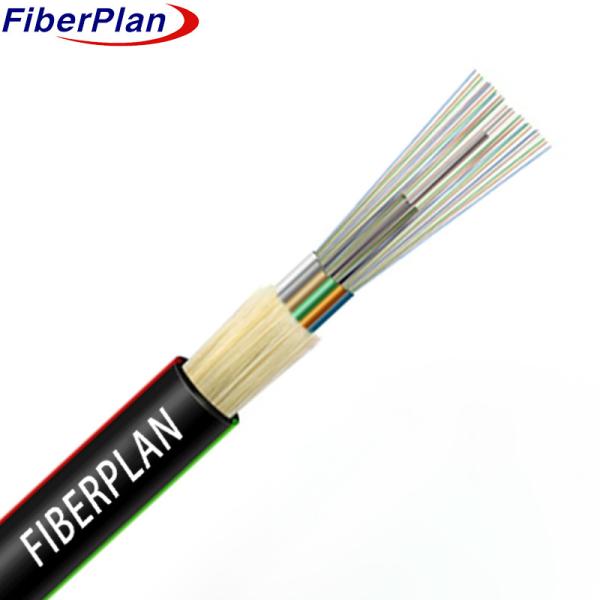

Non Armored Fiber Optic Cable 4 To 24 Core GYFTY With Kevlar Yarn

Description

Thin fibers are housed within a flexible tube constructed from high-modulus plastic, filled with a water-resistant

compound. At the core lies a Fiber Reinforced Plastic (FRP), serving as a non-metallic strength component.

Surrounding this core, the tubes and fillers intertwine to create a tight, circular core. The cable core is filled

with a protective gel to prevent water ingress. Kevlar yarn surrounds the cable core as the reinforcing strength

member, and finally, the cable is wrapped in a PE sheath for completion and added protection.

Application

  1. Designed for outdoor distribution applications.
  2. Suitable for trunk power transmission systems.
  3. Ideal for use in access and local networks situated in areas with high levels of electromagnetic interference.

Characteristic

  1. Demonstrates excellent mechanical strength and performs well across various temperatures.
  2. Features a high-strength, hydrolysis-resistant loose tube.
  3. Incorporates a specialized tube filling compound that ensures crucial protection for the fiber.
  4. Shows both crush resistance and flexibility.
  5. Utilizes a filling compound specifically designed for the loose tube.
  6. Ensures complete filling of the cable core for added protection.

Structure details

No. of fiber 6F 12F 24F 36F 48F 72F 96F 144F
No. of tube 1 2 4 3 4 6 8 12
Fiber per tube 6 6 6 12 12 12 12 12
No. of filler rod 4 3 1 2 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Nom. out diameter (±0.2mm) 8.6 8.6 8.6 8.6 8.6 9.2 10.8 13.4
Nom. jacket thickness
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Black
Tube filling Material Filling compound
Central strength member Material FRP Diameter 1.5mm (6 - 48F)
2mm (72 - 144F)
Layer PE (for 96C -144C only)
Water blcoking system Material water blocking tape
Rip cord Type 1110*2
Out sheath Material MDPE Color Black

Mechanical and environment performance

Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term (N/100mm) 300N/100mm
Short term (N/100mm) 1000N/100mm
Bending radius Dynamic (mm) 20D
Static (mm) 10D
Storage Temperature -20℃～+70℃
Installation Temperature -10℃～+60℃

Fiber Performance

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.22 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±0.2 125±0.2 125±0.2
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±3 242±3 242±3

Non Armored Fiber Optic Cable 4 To 24 Core GYFTY With Kevlar YarnNon Armored Fiber Optic Cable 4 To 24 Core GYFTY With Kevlar Yarn

Non Armored Fiber Optic Cable 4 To 24 Core GYFTY With Kevlar Yarn
