Outdoor Armored Single Multi Mode G652D Duct Fiber Optic Cable Black Aerial Unitube (Central Loose) GYXTW
Outdoor Armored Single Multi Mode G652D Duct Fiber Optic Cable Black Aerial Unitube (Central Loose) GYXTW
Outdoor Armored Single Multi Mode G652D Duct Fiber Optic Cable Black Aerial Unitube (Central Loose) GYXTW
Outdoor Armored Single Multi Mode G652D Duct Fiber Optic Cable Black Aerial Unitube (Central Loose) GYXTW
Specifications
Brand Name :
Fiberplan
Model Number :
GYXTW
Certification :
ISO 9001; TÜV certificate
Place of Origin :
China
MOQ :
1Km
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000Km per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden Drum
Price :
Negotiation
Application :
Telecommunication,Aerial,Telecom,Network
Jacket material :
PE,LSZH,PVC,TPU,LSZH OR PVC
Name :
GYXTW
Installation :
Duct/Aerial
Operating temperature :
-40~+75
Structure :
Unitube
Length :
Standard Length Of Cable Shall Be 2 Km. Other Cable Length Is Also Availabler
Allowed Lateral Pressure :
>1000(N/100mm)
Cable Type :
Single-mode
Fiber :
G652D single mode or multi mode
Description

Outdoor Armored Single Multi Mode G652D Duct Fiber Optic Cable Black Outdoor

Aerial Unitube (Central Loose) GYXTW

Description

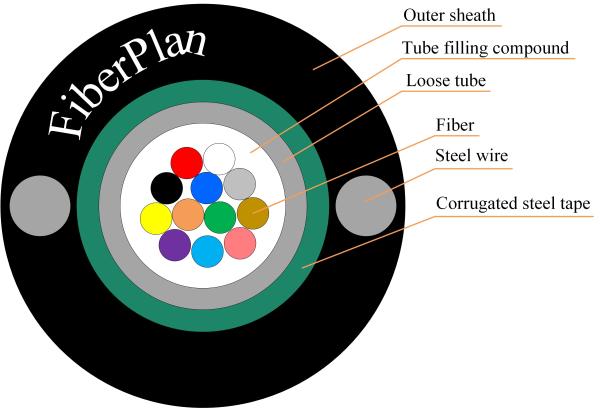

The fibers are housed in a loose tube made of high modulus plastic, filled with a water-resistant compound.

Around this tube, there's a layer of corrugated steel tape, with water-blocking material applied to ensure the

cable remains compact and waterproof. Two parallel steel wires are positioned on either side of the steel

tape for additional strength. Finally, the cable is finished with a polyethylene (PE) sheath for overall protection.

Application

This specification covers the general requirements of Central Loose Tube Outdoor Cable for aerial or duct.

Characteristics

* Reliable mechanical and temperature performance.

* High-strength loose tube resistant to hydrolysis.

* Special tube filling compound providing critical fiber protection.

* Both crush resistance and flexibility for durability and adaptability.

* Tensile strength ensured by two parallel steel wires.

* Compact size, lightweight, and ease of installation.

Cable construction details

Number of fiber 1~24core
Loose tube material PBT
diameter Ф2.2(outer/inner)
Tube-filling Tube filling compoun
Steel wire size 0.8mm
Number 2
Outer sheath material PE,HDPE,LDPE
diameter 1.8±0.2mm

Fiber color

Number of fiber per
tube 8cores		 1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua
Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead.

Cable Mechanical characteristic

core Cable diameter weight
1~24 8.0mm+-0.3mm 65kg/km+-10kg
Temperature range -40+70 -----
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term 1200
Min allowable
Tensile Strength(N)		 Short term 1500
Operation
temperature (℃)		 -40+70
Installation
temperature(℃)		 -20+60
Storage temprature
(℃)		 -40+70

Fiber characteristic

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
Bandwith 850nm MHZ.KM ---- ---- ≧400 ≧160 Bandwith
1300nm MHZ.KM ---- ---- ≧800 ≧500 　
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322		 ---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330		 ≧1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 　 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01 　 　 　
Core dimater um 　 　 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----

Outdoor Armored Single Multi Mode G652D Duct Fiber Optic Cable Black Aerial Unitube (Central Loose) GYXTW

Outdoor Armored Single Multi Mode G652D Duct Fiber Optic Cable Black Aerial Unitube (Central Loose) GYXTW

Outdoor Armored Single Multi Mode G652D Duct Fiber Optic Cable Black Aerial Unitube (Central Loose) GYXTW
