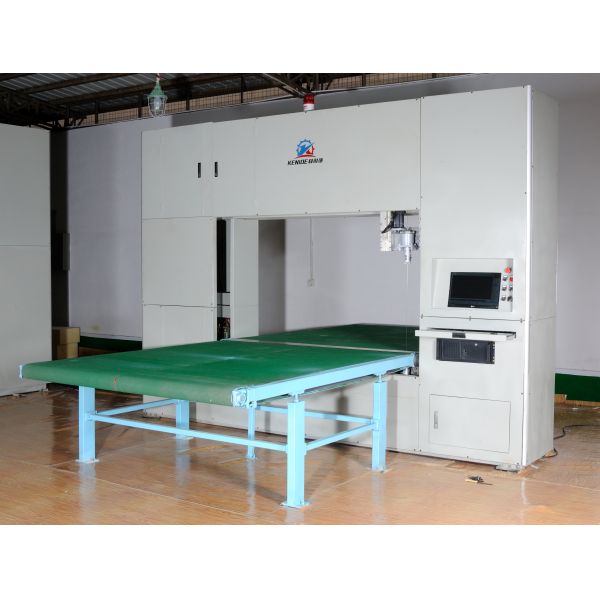

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine
Specifications
Brand Name :
ZHMACH
Model Number :
ZH-CNC-04
Certification :
CE Certificate
Place of Origin :
Guangdong China (Mainland)
MOQ :
one set
Price :
inquiry
Payment Terms :
L/C, T/T
Supply Ability :
two sets per month
Delivery Time :
30 days
Packaging Details :
paper ,wooden cases & film packageFilm
Max Foam Process Height :
1200mm (It can be adjusted by customer's requirments)
Max Foam Process Length :
2000mm(It can be adjusted by customer’s requirments)
Max Foam Process Width :
2000mm
Cutting Speed :
0-30m/min
Cutting Precision :
+/-0.5mm
Blade Speed :
0-1200m/min(Adjustable)
Blade Type :
Circulating Sawtooth Blade
Motor Details :
2x1.5Kw,2x0.75Kw Mitsubishi Servo Motors
Motor Brand :
Mitsubishi,Japan
Inverter Brand :
Delta
Contactor and Switch Brand :
Schneider,Germany (according to customer’s requirments) 3P
Voltage :
380V/220V 50Hz-60Hz(It can be changed)
Control System :
PC+ multipole motion control card
Operation System :
ZH,Windows XP
Free parts :
sawtooth blade 3pc; Repair tool 1 set
Machine Overall Dimension :
5000x5700x3100mm
Total Weight :
4000kgs
Total Power :
8kw
Package :
paper & film package
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine

CNC Cutting machines

Features :

1. the cnc router machines’ body is strong, rigid, high precision, reliable and durable.

2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high- precision.

3. cnc router using well-known domestic brands of air-cooled brushless spindle,

low noise, strong cutting ability, to ensure the long time working.

4. High-performance driven motor to ensure that the machines high speed and accuracy.

5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.

6. Breakpoint specific memory, power outages continued carving, processing time forecast,

and other functions to ensure that accidental processing.

7. Compatibility, compatible Type3/ Artcam/ Castmate/, and so on a variety of CAD/CAM design soft ware.

Description:

The machine uses several high precision gapless transmission agent. Besides, it is equipped with stable hammer, which can make the cutter frame torque stable up and down inertialess and freely. The control system is used of digital control system. It uses two stepper motors which improve the efficiency and precision in additioned Zehui digital control foaming
cutting machine control system is equipped with transducer which can up and down adjust the speedaccording to the foaming precision to perfect the quality. The surface is flat, markless and good quality feeling.

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine

1,Maximum cutting dimension:W2000*L2000*H1000MM

2, Cutting precision:0.5MM

3, Processing speed:0-10M/ Minute adjustable

4,Cutting method:Circular knife cutting

5, Knife with line speed:Stepless speed regulation 0-1200 M/ Minute adjustable Software:KENIDE

Special spongecutting system

6, Twist the knife mechanism:Using Mitsubishi servo motor system.

Control system:Computer + multi axis motion control card

7, Knife:Using ring serrated knife

The total power::Three phase 380V 50Hz 7KW

8, The external dimension of machine:L5000*W3600*H3000MM

9,Work table size: L2000*W2000

10, Accessories: a serrated knife 3, 1 sets of repair tools.

Machine pictures are as follows:Vertical knife CNC special-shaped sponge cutting machine

Platfoam is Turntable (Either manual or automatic) Yes, Manual
With Cooling Unit Yes
Sheet Holding Down device Yes
Knife Grinding Unit Yes
Knife Center Support No
Micro-tooth circulating knife Yes
Should cut 2 foam blocks together Yes
Should produce 20, 22, 24cm diameter cylindar foams Yes
Do you have a video guide for machine installation? Or paper guide with pictures? Yes, Video
Foam Type EVA, Ordinary Foam, Rebonding foams,etc.

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine

Special shape sponge

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine

The foam

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine

Company Information

Dongguan Zehui Machinery Co., Ltd is specialized in research and development and manufacture foam machines and cutting machines. Take the advance technology of some profession and improvement. Absorb the new originality strictly control the product quality full service tracking insist on manufacturing the high quality products.

Our Services

We will send our engineer to the buyer factory to help to install and testing the machine.

We will also provided the trageted fornulation and maintance operation manul to the buyer after the testing of the machine.

We will offer one year warranty after that we will offer long time after sale service the customer can contact us at any time for any problem.

Vertical CNC Industrial Hot Wire Foam Cutter , Foam Die Cutting Machine

Any more question about the foaming and the machine just feel free to contact us we will be very happy to see that our machine can met your need.
