0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
Specifications
Brand Name :
AMILA
Model Number :
MPES
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Suction area(φ)) :
40mm-180mm
Seal Element :
self-adhesive sponge.
Material :
anodized aluminum and self-adhesive sponge.
Working temperature :
-40…80 ℃
Keyword :
Vacuum Gripping System
Description

Foam Vacuum Gripper MPES Is Made Of Anodized Aluminum And Self-Adhesive Sponge


1. Introduction

  • For grasping paper or plastic bags, packaging and flexible containers contain powder,granular products, loose or liquid products.

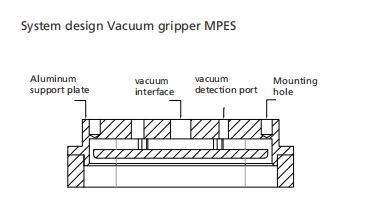

2. Structure

  • Made of anodized aluminum and self-adhesive sponge.
  • The middle threaded hole is used to fix the side hole for vacuum connection.

0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge

3. Technical Parameter:

model suction weight working temperature
Ds[N] [kg] [℃]
MPES 120×60 G3/8 94 0.36 -40…80
MPES 160×90 G1/2 179 0.63 -40…80
MPES 210×95 G1/2 274 0.8 -40…80
MPES 200×150 G1 438 1.1 -40…80
MPES 300×200 G1 825 2.24 -40…80
MPES 400×300 G2 1744 3.85 -40…80

4. Ordering data
model ordering data model ordering data
MPES 120×60 G3/8 90.02.01.00688 MPES 200×150 G1 90.02.01.00691
MPES 160×90 G1/2 90.02.01.00689 MPES 300×200 G1 90.02.01.00692
MPES 210×95 G1/2 90.02.01.00690 MPES 400×300 G2 90.02.01.00693

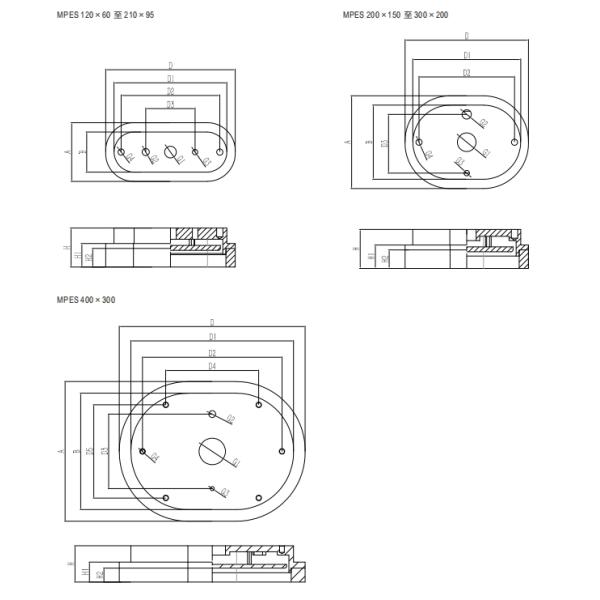

5. Design Data:
0.36kg Anodized Aluminum Vacuum Suction Gripper With Self Adhesive Sponge
Type Size [mm]
D D1 D2 D3 D4 D5 A B H H1 H2 G1 G2 G3 G4
MPES 120×60 G3/8 120 111 100 - - - 60 40 49 20 15 G3/8 - - M8
MPES160×90 G1/2 160 145 130 80 - - 90 60 63 38 30 G1/2 G1/4 G1/8 M12
MPES 210×95 G1/2 210 185 160 80 - - 95 60 63 38 30 G1/2 G1/4 G1/8 M12
MPES 200×150 G1 200 175 160 95 - - 150 120 63 38 30 G1 G3/8 G1/8 M12
MPES 300×200 G1 300 250 200 115 - - 200 150 78 38 30 G1 G3/8 G1/8 M12
MPES 400×300 G2 400 350 300 160 200 200 300 250 78 38 30 G2 G3/8 G1/8 M12
