Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Specifications
Brand Name :
AMILA
Model Number :
MLE
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Suction area(φ)) :
107*75mm to 290*140mm
Seal Element :
self-adhesive sponge.
Material :
anodized aluminum and self-adhesive sponge.
Working temperature :
-40…80 ℃
Keyword :
Vacuum Gripping System
Highlights :
The middle threaded hole is used for connecting vacuum
Description

Foam Vacuum Gripper MLE With Special GERANIUM Material And Shore Hardness


1. Introduction

  • Handling for transporting workpieces with uneven rough surface, such as sawn, beaten by sleeves or burning marble;Textured, non-slip or formed metal plates; Striped plexiglass,cement products, garden tiles with texture, etc.

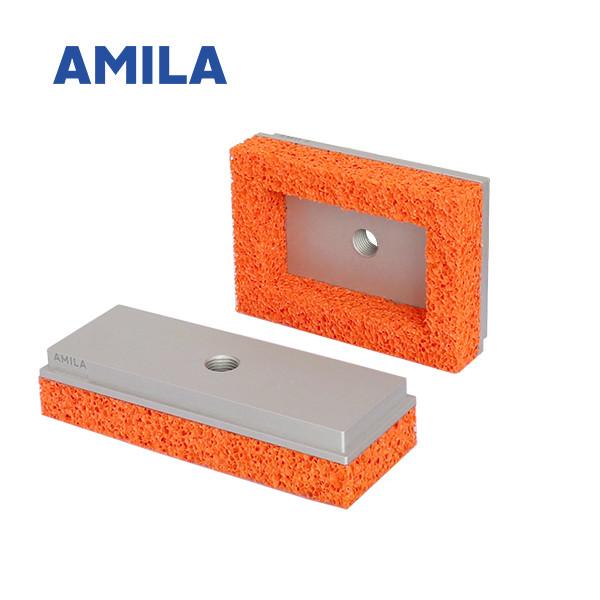

2. Structure

Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge

  • Made of anodized aluminum and self-adhesive sponge.
  • The middle threaded hole is used for connecting vacuum.

3. Technical Parameter:

model suction Internal volume working temperature
Ds[N] [cm3] [℃]
MLE 107×75 G1/4 90 55.6 -40…80
MLE 135×50 G1/4 60 34 -40…80
MLE 135×60 G1/4 80 50 -40…80
MLE 290×68 G3/8 250 152.6 -40…80
MLE 290×140 G1/2 720 434.5 -40…80

4. Ordering data

model ordering data model ordering data
MLE 107×75 G1/4 90.02.01.00694 MLE 290×68 G3/8 90.02.01.00697
MLE 135×50 G1/4 90.02.01.00695 MLE 290×140 G1/2 90.02.01.00698
MLE 135×60 G1/4 90.02.01.00696
5. Design Data:
Shore Hardness Anodized Aluminum Foam Vacuum Gripper With Self Adhesive Sponge
Type Size [mm]
D D1 D2 A B H H1 H2 G1 G2 G3 X Y
MLE 107×75 G1/4 107 102 - 75 70 26 18 15 G1/4 - M5 60 40
MLE 135×50 G1/4 135 130 - 50 45 26 18 15 G1/4 - M5 80 30
MLE 135×60 G1/4 135 130 - 60 55 26 18 15 G1/4 - M5 80 40
MLE 290×68 G3/8 290 284 200 68 62 26 18 15 G3/8 G1/8 M5 80 40
MLE 290×140 G1/2 290 284 200 140 134 26 18 15 G1/2 G1/8 M5 80 100
