Specifications
Brand Name :
AMILA
Model Number :
MPE
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Suction area(φ)) :
40mm-180mm
Seal Element :
self-adhesive sponge.
Material :
anodized aluminum and self-adhesive sponge.
Working temperature :
-40…80 ℃
Keyword :
Vacuum Gripping System
Description

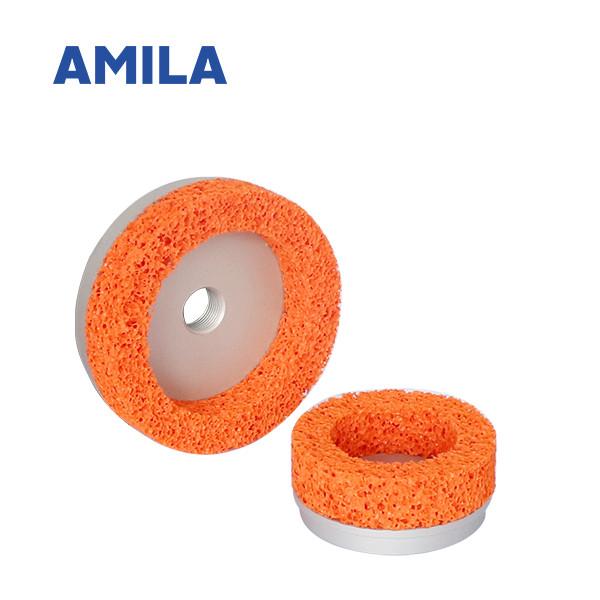

Foam Vacuum Gripper MPE for Transporting Workpieces with Uneven Rough Surface


1. Introduction

  • Handling for transporting workpieces with uneven rough surface, such as sawn, beaten by sleeves or burning marble;Textured, non-slip or formed metal plates; Striped plexiglass,cement products, garden tiles with texture, etc.

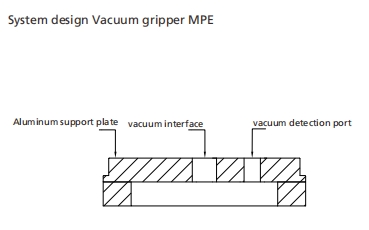

2. Structure

Dia180mm Suction Area Foam Vacuum Gripper For Uneven Rough Surface Workpieces

  • Made of anodized aluminum and self-adhesive sponge.
  • The middle threaded hole is used to fix the side hole for vacuum connection.

3. Technical Parameter:

model suction Internal volume working temperature
Ds[N] [cm3] [℃]
MPE 40 G1/4 7.8 4.7 -40…80
MPE 64 G1/4 35 18.8 -40…80
MPE 92 G3/8 85 48.2 -40…80
MPE 127 G3/8 175 99.6 -40…80
MPE 180 G3/8 385 230.7 -40…80
4. Ordering data
model ordering data
MPE 40 G1/4 90.02.01.00680
MPE 64 G1/4 90.02.01.00682
MPE 92 G3/8 90.02.01.00684
MPE 127 G3/8 90.02.01.00686
MPE 180 G3/8 90.02.01.00687

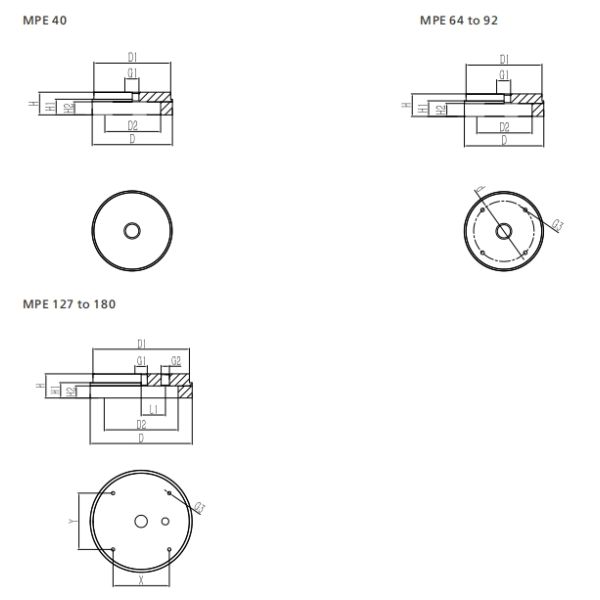

5. Design Data:
Dia180mm Suction Area Foam Vacuum Gripper For Uneven Rough Surface Workpieces
Type Size [mm]
D D1 D2 H H1 H2 L1 G1 G2 d X Y
MPE 40 G1/4 40 - 20 25 - 15 - G1/4 - - - -
MPE 64 G1/4 64 60 40 25 18 15 - G1/4 - 50 - -
MPE 92 G3/8 92 88 64 26 18 15 - G3/8 - 70 - -
MPE 127 G3/8 127 120 92 30 19 15 30 G3/8 G1/8 - 70 70
MPE 180 G3/8 180 160 140 27 20 15 60 G3/8 G1/8 - 80 80
