65mm Width Alumina Body Foam Vacuum Gripper For Large Area
65mm Width Alumina Body Foam Vacuum Gripper For Large Area
65mm Width Alumina Body Foam Vacuum Gripper For Large Area
65mm Width Alumina Body Foam Vacuum Gripper For Large Area
65mm Width Alumina Body Foam Vacuum Gripper For Large Area
65mm Width Alumina Body Foam Vacuum Gripper For Large Area
65mm Width Alumina Body Foam Vacuum Gripper For Large Area
65mm Width Alumina Body Foam Vacuum Gripper For Large Area
Specifications
Brand Name :
AMILA
Model Number :
ATF
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Width :
65mm
Seal Element :
foam grippers
Category :
ATF-SVK / ATF-SW
Application :
Large Area
Keyword :
Vacuum Gripping System
Material :
Alumina Body
Description

Foam Vacuum Gripper Large Area Vacuum Gripping System ATF With Alumina Materials


1. Introduction

  • External vacuum source, alumina main body, sponge wear resistance；
  • Small size, convenient installation and good adsorption stability；
  • Width 65mm；

2. Technical Parameter:

Type Quantity of suction holes

The required suction force

(I/min)

 Suction(N) Weight(kg)
ATF-SVK 200 14 90 56 1.1
ATF-SVK 250 22 90 88 1.4
ATF-SVK 300 30 90 120 1.7
ATF-SVK 400 38 180 152 2.1
ATF-SVK 500 46 180 184 2.4
ATF-SVK 600 54 180 216 2.7
ATF-SW 200 14 90 56 1.1
ATF-SW 250 22 90 88 1.4
ATF-SW 300 30 90 120 1.7
ATF-SW 400 38 180 152 2.1
ATF-SW 500 46 180 184 2.4
ATF-SW 600 54 180 216 2.7

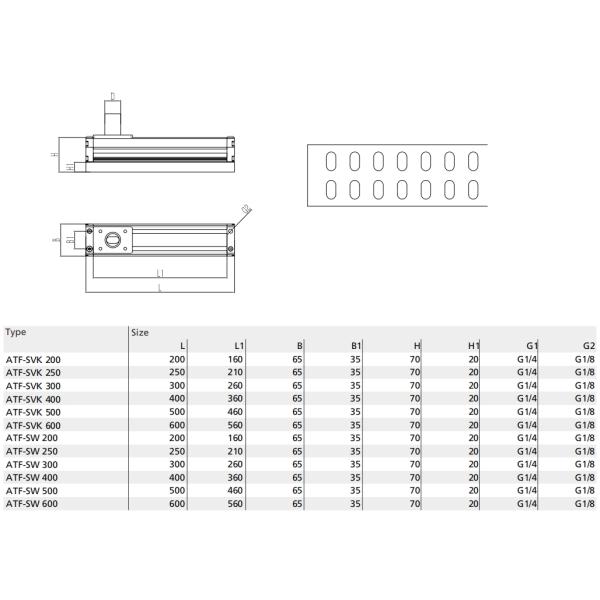

3.Design Data:
65mm Width Alumina Body Foam Vacuum Gripper For Large Area
