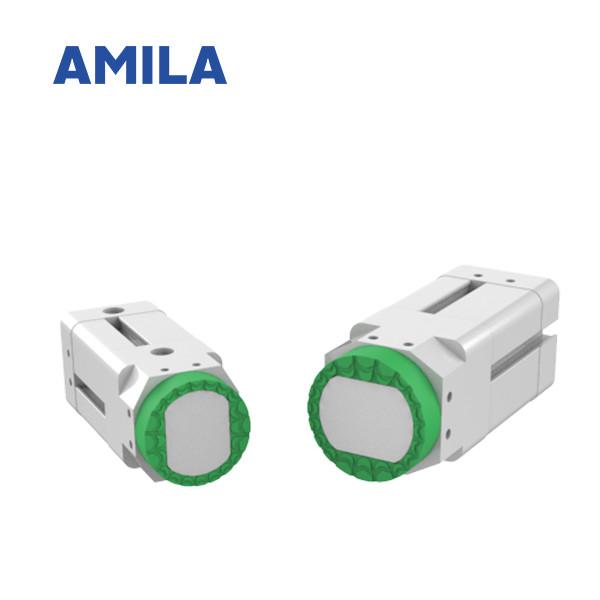

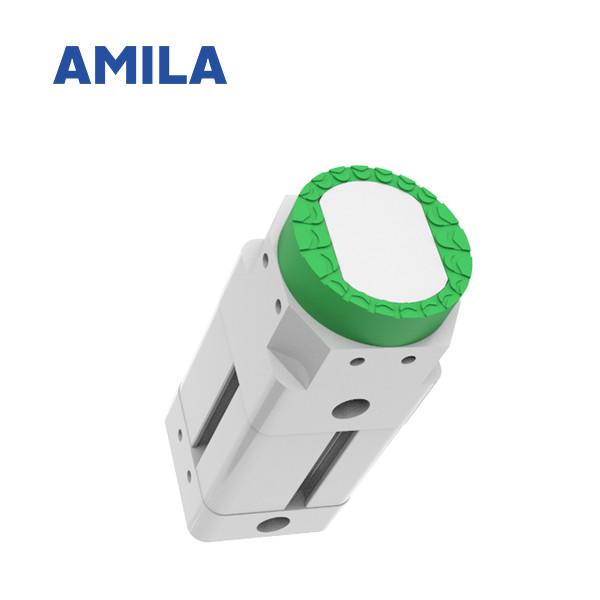

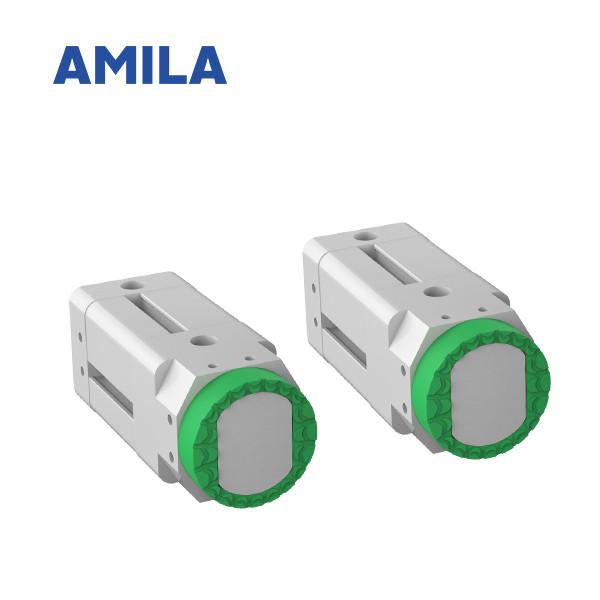

Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG
Specifications
Brand Name :
AMILA
Model Number :
Magnetic gripper MGM-HP
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Diameter :
20 to 50mm
Suction Force :
28 to 560N
Connecting thread :
G1/8 IG / G1/4 IG
Working temperatur :
5-70℃
Material :
Aluminum
Highlight :
Handling of ferromagnetic workpieces
Type :
Gripper
Description

Pneumatic Magnetic Gripper MGM-HP Aluminum Material With Permanent Magnet

1. Introduction and applicaton

  • Transporting porous metal plates and cutting pieces with complex geometric shapes;
  • Handling magnetic workpieces;

2. Features:

  • High magnetic adsorption;
  • Strong aluminum shell with permanent magnet parts inside;
  • Clamp friction washer, which can be replaced quickly;
  • The top has a standard threaded hole;
  • Mountable sensors for detection;

3. Structure

Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG

4 Technology data:

Type Maximum holding force(N) Working pressure range(bar) Installation position Control Working temperature(℃) Weight(g)
MGM-HP 20 G1/8-IG 28 2.5...6 Arbitrary Bistable 5...70 81
MGM-HP 30 G1/8-IG 120 2.5...6 Arbitrary Bistable 5...70 215
MGM-HP 40 G1/4-IG 290 2.5...6 Arbitrary Bistable 5...70 415
MGM-HP 50 G1/4-IG 560 2.5...6 Arbitrary Bistable 5...70 770


5. Design data

Aluminum Shell Pneumatic Magnetic Gripper G1/4 IG G1/8 IG

MGM-HP.pdf
