Specifications
Brand Name :
AMILA
Model Number :
Spring Buffer Strut MTA
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Material :
Stainless steel and brass
Connection :
G1/4'' to G1/2''
Buffer stroke :
25 to 90mm
Highlight :
Integrated Vacuum Import
Description

Vacuum Cup Fittings Spring Buffer Strut MTA Stainless Steel With Brass

1. Introduction and application:

  • Spring plunger with two damping springs for handling of workpieces with differing heights, such as curved metal sheets,etc.
  • Handle pressure sensitive workpieces (such as glass) to ensure flexible contact

2. Structure

Stainless Steel And Brass Vacuum Cup Fittings For Handling Sensitive Workpieces MTA

  • Spring plunger consisting of a high strength rod made of galvanized steel, guide sleeve (3) and upper (2) and lower (5) damping springs;
  • The vacuum channel at the upper end of the Plunger is provided with an internal thread connection (1);
  • Thread for suction cup is always a external thread (6);
  • Two lock nuts for attachment (4).

3.Technology Data:

Type Spring load rate Spring pretension Spring force Vertical load Horizontal load Weight Operating temperature
【N/mm】 【N】 【N】 【N】 【N】 【g】 【℃】
MTA G1/4-AG-25-M20 0.711 8.95 17.8 2400 800 185 0...80
MTA G1/4-AG-50-M20 0.262 14.1 20.6 2400 490 210 0...80
MTA G1/2-AG-25-M30 3.828 25.65 73.5 4900 1870 493 0...80
MTA G1/2-AG-50-M30 1.81 3.95 49.2 4900 1200 539 0...80
MTA G1/2-AG-90-M30 1.072 24.38 75.3 4900 730 645 0...80

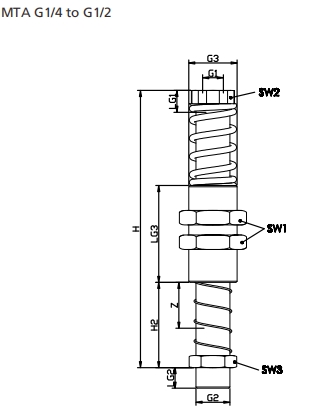

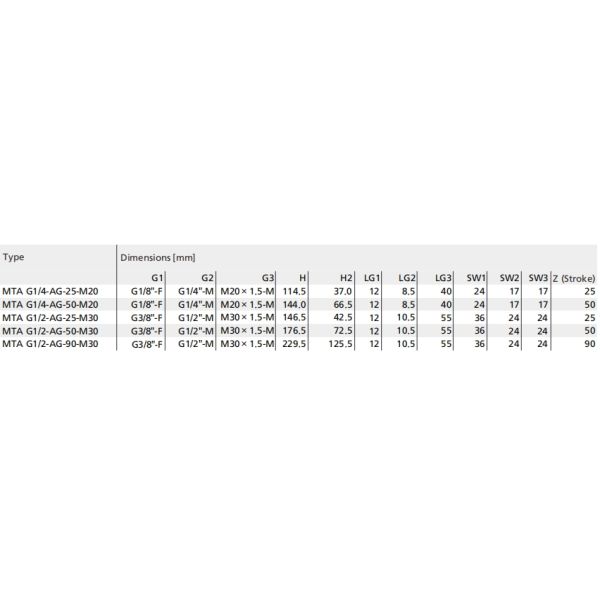

4.Design Data

Stainless Steel And Brass Vacuum Cup Fittings For Handling Sensitive Workpieces MTA

Stainless Steel And Brass Vacuum Cup Fittings For Handling Sensitive Workpieces MTA
