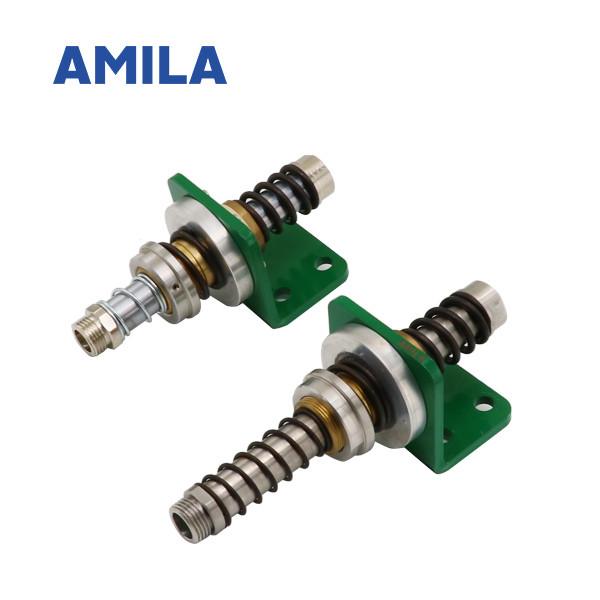

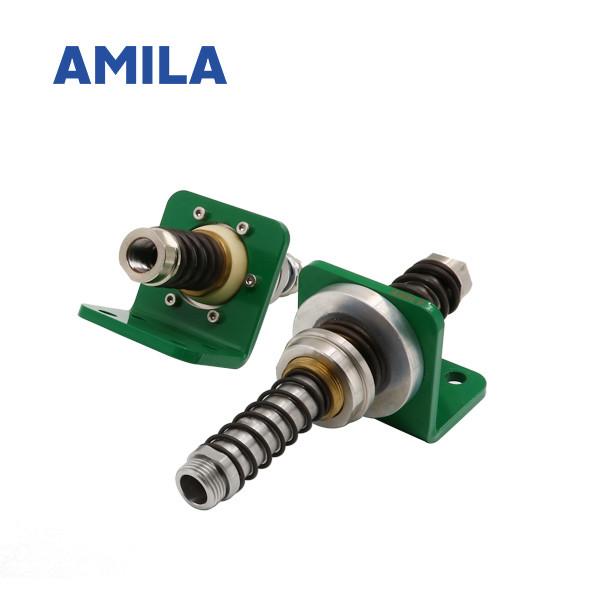

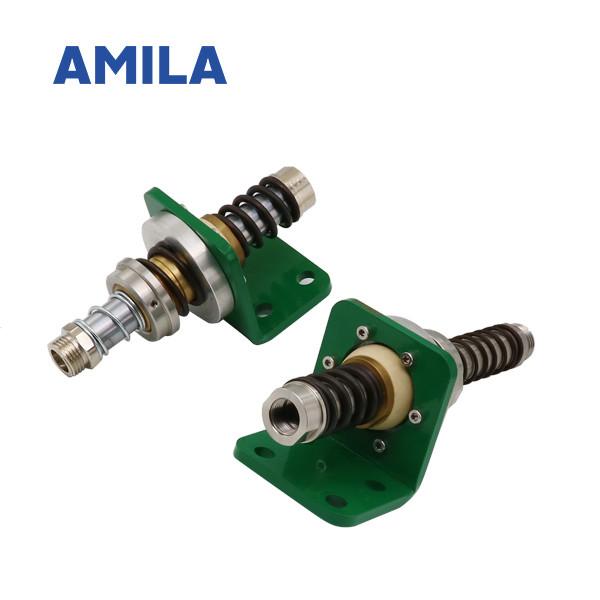

Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint
Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint
Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint
Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint
Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint
Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint
Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint
Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint
Specifications
Brand Name :
AMILA
Model Number :
Spring Buffer Strut MTE-FLEX
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Material :
Stainless steel with brass sleeve
Connection :
G1/2''
Buffer stroke :
25 to 75mm
Highlight :
Design of non-interference ball joint
Description

Vacuum Cup Fittings Spring Buffer Strut MTE-FLEX Non-interference Ball Joint

1. Introduction and application:

  • The spherical flexible buffer strut is provided with double-position upper and lower reinforcing springs, and the central spring and the universal ball joint are perfectly compensated.
  • Height difference when handling workpiece;
  • Handling very sensitive components without additional control requirements (e.g. glass sheets), it ensures that workpieces are set down gently;
  • Handling very warped and naturally grown materials (e.g. dried wood) without additional technical control requirements;
  • Use under harsh conditions;
  • Highly dynamic handling tasks with short cycle times;

2.Structure

Compact size Vacuum Cup Fittings With 25 To 75mm Buffer Stroke / Non Interference Ball Joint

  • Spring plunger with stainless steel plunger rod, brass guide sleeve with integrated sliding sleeve, both lower (5) and upper (1) damping spring
  • High quality stainless steel protective mounting plate (2) to maintain system balance;With a central reinforcing spring (3) and a spring seat nut (4), the prestress of the center can be adjusted by a lock nut arranged on the spring seat nut module.
  • Jointed mounting (6) available as an option (high quality steel and vulcanized bonded rubber)
  • The powder coating mounting plate (7) is suitable for large-area grippers systems

3.Technology Data:

Type Spring load rate Spring pretension Spring force Vertical load Weight Operating temperature
【N/mm】 【N】 【N】 【N】 【g】 【℃】
MTE-FLEX 25 HD1 G1/2-AG G3/8-IG 3.828 25.6 73.5 3000 1450 0...80
MTE-FLEX 50 HD1 G1/2-AG G3/8-IG 1.81 5.4 50.7 3000 1500 0...80
MTE-FLEX 75 HD1 G1/2-AG G3/8-IG 1.072 36.9 77.1 3000 1550 0...80
MTE-FLEX 25 HD2 G1/2-AG G3/8-IG 3.828 51.3 147 6000 2700 0...80
MTE-FLEX 50 HD2 G1/2-AG G3/8-IG 1.81 10.9 101.4 6000 2800 0...80
MTE-FLEX 75 HD2 G1/2-AG G3/8-IG 1.072 73.9 154.3 6000 2900 0...80

4.Design Data
