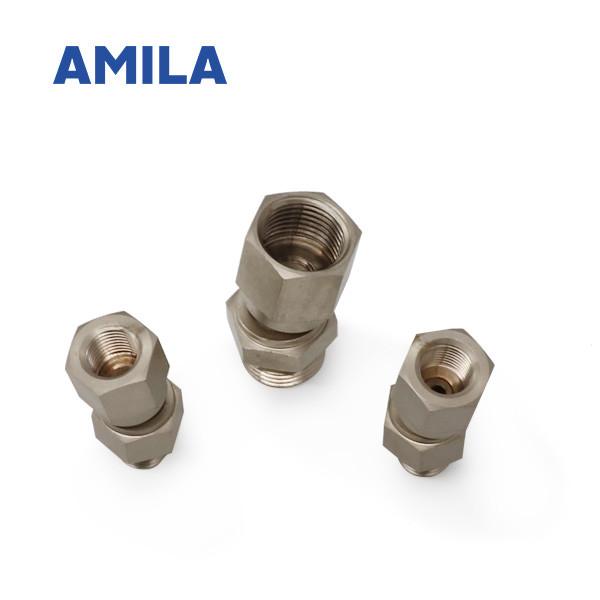

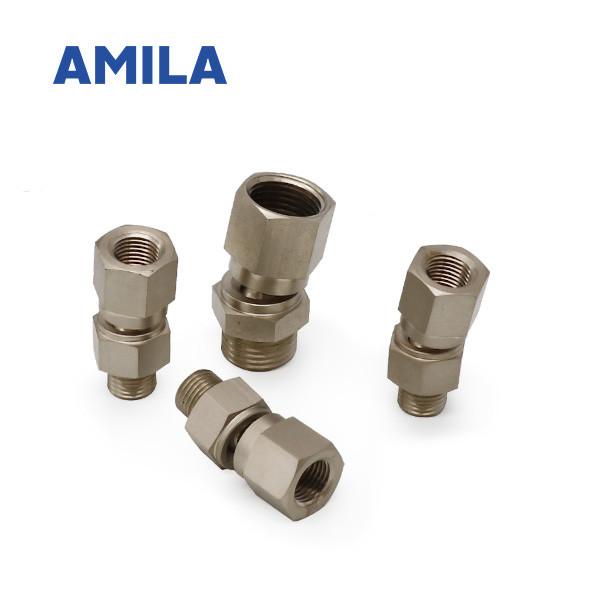

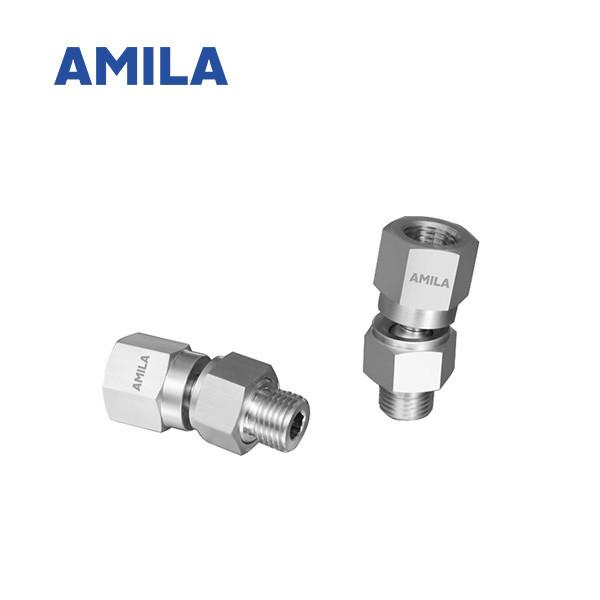

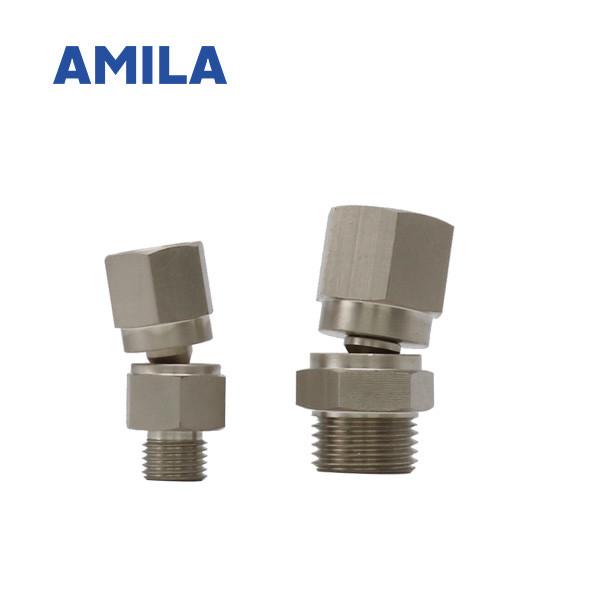

Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Specifications
Brand Name :
AMILA
Model Number :
Ball Joints MGL
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Connection :
G1/4" and G1/2
Deflection :
max. 15°
Highlight :
Sealed ball-and-socket joint with vacuum-tight seal
Material :
Copper
Description

Vacuum Cup Fittings Vacuum Sealed Ball Joints MGL Copper Materials

1. Introduction and application:

  • Connect large suction cups for workpieces with inclined surfaces.
  • When transporting large workpieces (such as metal thin plates and wood plates), the workpiece usually has a state of drooping at both ends and sag in the middle.The suction cups can tilt at a certain angle to keep good contact with the workpieces to prevent it from falling off when you use a flexible joint.
  • The flexible joint can be used in combination with the spring buffer strut to compensate and adjust the height difference and uneven surface of the workpiece.

2.Technology Data:

Type Vertical load [N] Deflection:max.[°] Weight [g]
MGL G1/4-IG G1/4-AG 1500 15 67
MGL G1/2-IG G1/2-AG 2500 15 116

***Note: MGL IG(internal thread) AG(external thread)

3.Design Data
Copper Spring Ball Joint MGL For Connecting Large Vacuum Suction Cups
Type Size(MM)
DN G1 G2 H LG1 LG2 SW1 W(°)
MGL G1/4-IG G1/4-AG 3.5 G1/4''-F G1/4''-M 37.5 12 10 19 15
MGL G1/2-IG G1/2-AG 4 G1/2''-F G1/2''-M 40 14 12 24 15

Ball Joints MGL.pdf
