Green Case Vacuum Actuator Solenoid Valve , Aluminum Check Valve Easy Operation
Green Case Vacuum Actuator Solenoid Valve , Aluminum Check Valve Easy Operation
Specifications
Brand Name :
AMILA
Model Number :
Direct Acting 2/3 Way Vacuum Solenoid Valve MO
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Depending on the order quantity
Delivery Time :
Negotiatable
Packaging Details :
Carton package/Wooden cases
Item :
Vacuum Solenoid Valve
Material :
Aluminum Alloy
Nominal Diameter :
15 to 40mm
Connection Thread :
G1/2"to G1 1/2''
Type :
2/3 Way
Characteristics :
Vacuum Valve
Description

Vacuum Valve Technology Direct Acting 2/3 Way Vacuum Solenoid Valve MO

1. Introduction and application

  • The valve is usually used for vacuum cutting of feeders, suction stackers, robots, bag openers and other occasions requiring rapid reaction between suction and air intake in the circuit, and can also ensure vacuum connection when power loss or no air pressure exists.
  • As the pressure difference is small, the valve cannot normally switch the hole position and cannot be used in low vacuum.

2. Design

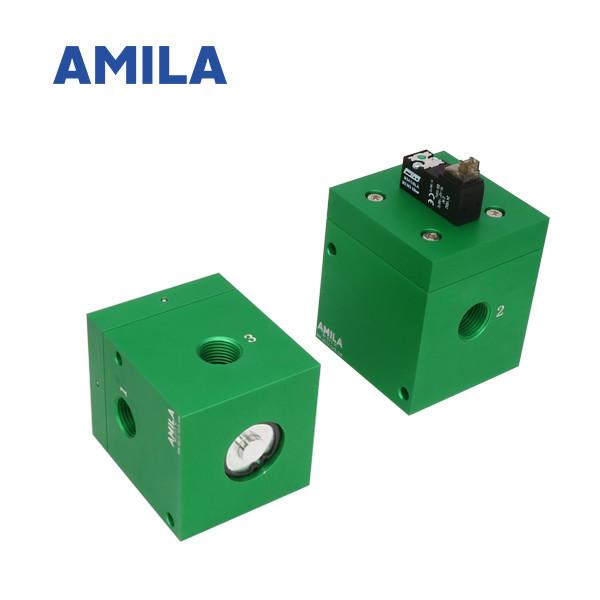

Green Case Vacuum Actuator Solenoid Valve , Aluminum Check Valve Easy Operation

  • The body is made of aluminum alloy.
  • Solenoid valve controls piston action.
  • When the valve is used normally open, (1) is the vacuum pump interface, (2) is the pressure relief port, and (3) is the action port.
  • When the valve is used as a normally closed, (1) is the pressure relief port, (2) is the vacuum pump interface, and (3) is the action port.

3. Technolody Data

Type Maximum flow Minimum vacuum Maximum vacuum Excitation reaction time Degaussing reaction time Bore diameter Through hole area Weight
[cum/h] [mbar abs] [mbar abs] [msec] [msec] [mm] [mm2 ] [Kg]
MO G1/2 NC 20 850 0.5 30 15 15 176 1.53
MO G1/2 NO 20 850 0.5 20 18 15 176 1.53
MO G3/4 NC 40 850 0.5 30 15 20 314 1.5
MO G3/4 NO 40 850 0.5 20 18 20 314 1.5
MO G1 NC 90 850 0.5 38 18 25 490 1.91
MO G1 NO 90 850 0.5 25 20 25 490 1.91
MO G1 1/2 NC 180 850 0.5 75 50 40 1256 5.9
MO G1 1/2 NO 180 850 0.5 70 60 40 1256 5.9

Direct Acting 2&3-Way Vacuum Solenoid Valve MO.pdf...
