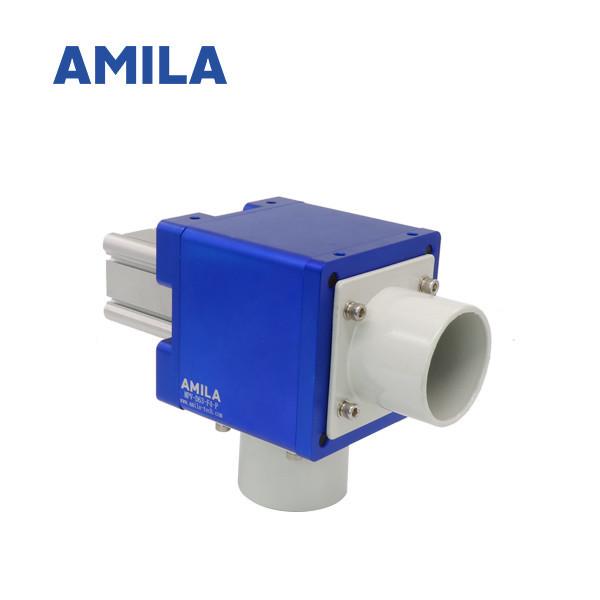

2/3 Way Pneumatic Vacuum Valve Alumina Material MPV-D-F4-P 32 Or 60mm Diameter
2/3 Way Pneumatic Vacuum Valve Alumina Material MPV-D-F4-P 32 Or 60mm Diameter
2/3 Way Pneumatic Vacuum Valve Alumina Material MPV-D-F4-P 32 Or 60mm Diameter
2/3 Way Pneumatic Vacuum Valve Alumina Material MPV-D-F4-P 32 Or 60mm Diameter
Specifications
Brand Name :
AMILA
Model Number :
MPV-D-F4-P
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Depending on the order quantity
Delivery Time :
Negotiatable
Packaging Details :
Carton package/Wooden cases
Item :
Pneumatic Valve
Type :
2/3 Way
Material :
Alumina
Nominal Diameter :
32 or 60mm
Keyword :
Vacuum Valve Technology
Description

Vacuum Valve Technology 2/3 Way Vacuum Pneumatic Valve Alumina MPV-D-F4-P

1. Introduction and application

  • The valve is controlled by the cylinder internal piston action, thus realizing vacuum opening and closing.
  • It is suitable for occasions requiring quick vacuum switching.
  • Extremely short opening and closing times.
  • Also suitable for high volume flow rates.
  • Control of vacuum on/off or venting functions.

2. Design

2/3 Way Pneumatic Vacuum Valve Alumina Material MPV-D-F4-P 32 Or 60mm Diameter

  • The body is made of Alumina,
  • (1) is a vacuum pump joint,
  • (2) is the working port,
  • Cylinder (4) controls piston (3)action.

3.Design Data

2/3 Way Pneumatic Vacuum Valve Alumina Material MPV-D-F4-P 32 Or 60mm Diameter

Type length(MM)
B D1 D2 H G1 G2 G3 L L1 X1 Y1
MPV-D32-F4-P 100 32 32 146 G1/8-F G1/8-F M6-F 223.5 154 95 60
MPV-D63-F4-P 100 60 60 146 G1/8-F G1/8-F M6-F 223.5 154 95 60

Vacuum Pneumatic Valve MPV-D63-F4-P.pdf
