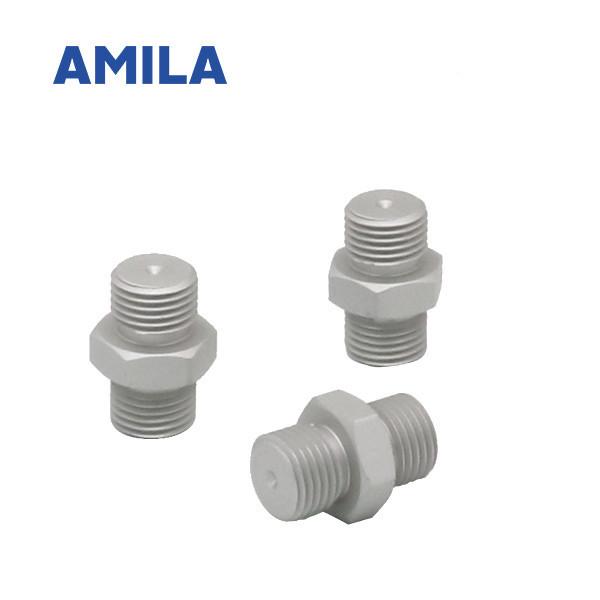

Narrow Space Use Vacuum Valve Throttle Type Long Service Life Robust Constructure
Narrow Space Use Vacuum Valve Throttle Type Long Service Life Robust Constructure
Specifications
Brand Name :
AMILA
Model Number :
Throttle Valve SW
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Depending on the order quantity
Delivery Time :
Negotiatable
Packaging Details :
Carton package/Wooden cases
Type :
Throttle Valve
Material :
Aluminium
Nominal Diameter :
4.8 to 20.4 m³ /h
Connection Thread: :
M5 to G1/4"
Usage :
Threaded Joints At Both Ends
Technology :
Vacuum Valve Technology
Description

Vacuum Valve Technology Throttle Valve SW Threaded Joints At Both Ends

1. Introduction and application

  • Vacuum Valve for applications where some of the suction cups may not always be in contact with the workpiece
  • Vacuum line to a suction cup is opened only if a workpiece is detected by a mechanical sensor
  • May be installed in any orientation

2. Design

  • Threaded joint with cross section at both ends
  • Wide range of apertures for different volumetric flows

3. Advantages

  • Robust construction and long service life;
  • Automatically reduces the vacuum channel section, especially suitable for handling breathable workpieces;
  • Suitable for narrow space.

4. Technology Data

Type Nominal diameter Evacuation rate for pu = -0.3 bar Evacuation rate for pu = -0.3 bar Evacuation rate for pu = -0.6 bar Evacuation rate for pu = -0.6 bar
[m3 /h] [l/min] [m3 /h] [l/min]
SW 25 0.25mm 0.01 0.2 0.02 0.3
SW 40 0.40mm 0.06 1 0.08 1.3
SW 50 0.50mm 0.13 2.2 0.15 2.5
SW 60 0.60mm 0.18 3 0.19 3.1
SW 70 0.70mm 0.24 4 0.26 4.3
SW 80 0.80mm 0.3 4.9 0.32 5.3
SW 90 0.90mm 0.39 6.5 0.42 7
SW 100 1.00mm 0.47 7.8 0.5 8.4
SW 110 1.10mm 0.62 10.3 0.63 10.5
SW 120 1.20mm 0.74 12.3 0.76 12.7
SW 150 1.50mm 1.32 22 1.4 23.4
SW 200 2.00mm 2.05 34.1 2.18 36.4

Throttle Valve.pdf
