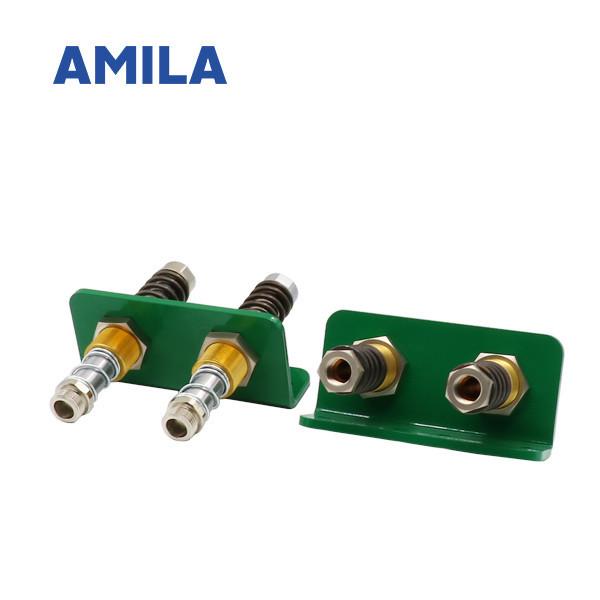

Maintenance Free Vacuum Cup Fittings , Double Spring Type Spring Buffer Strut MTE-STARR
Maintenance Free Vacuum Cup Fittings , Double Spring Type Spring Buffer Strut MTE-STARR
Specifications
Brand Name :
AMILA
Model Number :
Spring Buffer Strut MTE-STARR
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Material :
Stainless steel with brass sleeve
Connection :
G1/2''
Buffer stroke :
25 to 75mm
Highlight :
Heavy duty
Type :
Double Spring
Description

Vacuum Cup Fittings Spring Buffer Strut MTE-STARR Double Spring Type

1. Introduction

  • Maintenance free, with extremely long operating lifetime; suitable for short cycle times
  • Guarantees soft placement on easily damaged workpieces. Absorbs shocks and vibration. Prevents excessively long strokes
  • Available for a wide range of applications and for all suction cups of the standard range

2. Usage

  • Spring plunger with two damping springs and special slide bearings for handling workpieces with differences in height, e.g. curved sheet metal or wooden parts;
  • Handling very sensitive components without additional control requirements (e.g. glass sheets), it ensures that workpieces are set down gently;
  • Handling very warped and naturally grown materials (e.g. dried wood) without additional technical control requirements;
  • Use under harsh conditions;
  • Highly dynamic handling tasks with short cycle times;

3. Structure

Maintenance Free Vacuum Cup Fittings , Double Spring Type Spring Buffer Strut MTE-STARR

  • Spring plunger with stainless steel plunger rod, brass guide sleeve with integrated sliding sleeve both lower (5) and upper (1) damping spring;
  • High quality stainless steel mounting plate (2) for fixing brassguide sleeve (4) and integrated sliding sleeve the guide sleeve is attached by two lock nuts (3);
  • Optional flexible joint (6) connection (high quality steel and vulcanized adhesive rubber) for maximum angular compensation;
  • The powder coating mounting plate (7) is suitable for large-area clamp systems;

4. Technology Data:

Type Spring load rate Spring pretension Spring force Vertical load Weight Operating temperature
【N/mm】 【N】 【N】 【N】 【g】 【℃】
MTE-STARR 25 HD2 G1/2-AG G3/8-IG 3.828 51.3 147 6000 2300 0...80
MTE-STARR 50 HD2 G1/2-AG G3/8-IG 1.81 10.9 101.4 6000 2400 0...80
MTE-STARR 75 HD2 G1/2-AG G3/8-IG 1.072 73.9 154.3 6000 2500 0...80
MTE-STARR 25 HD1 G1/2-AG G3/8-IG 3.828 25.6 73.5 3000 1200 0...80
MTE-STARR 50 HD1 G1/2-AG G3/8-IG 1.81 5.4 50.7 3000 1250 0...80
MTE-STARR 75 HD1 G1/2-AG G3/8-IG 1.072 36.9 77.1 3000 1300 0...80


5. Design Data

Maintenance Free Vacuum Cup Fittings , Double Spring Type Spring Buffer Strut MTE-STARR

Maintenance Free Vacuum Cup Fittings , Double Spring Type Spring Buffer Strut MTE-STARR

Suspension Flexible MTE-STARR.pdf
