Maintenance Free Vacuum Cup Fittings , Threaded Spring Plunger For Heavy Duty Occasions
Maintenance Free Vacuum Cup Fittings , Threaded Spring Plunger For Heavy Duty Occasions
Specifications
Brand Name :
AMILA
Model Number :
Spring Buffer Strut MTA-HD
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Highlight 2 :
Vacuum Cup Fittings
Material :
Stainless steel and brass
Connection :
G1/4'' to G1/2''
Buffer stroke :
25 to 90mm
Highlight 1 :
Suitable for heavy-duty occasions
Name :
Spring Buffer Strut
Description

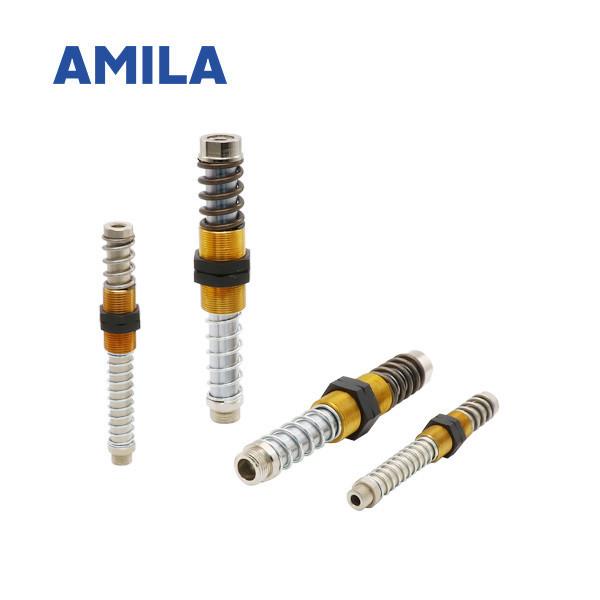

Vacuum Cup Fittings Spring Buffer Strut MTA-HD Stainless Steel With Brass

1. Introduction and application:

  • Spring plunger with special sliding bearings and one damping spring for handling of workpieces with differing heights, such as curved metal sheets, etc.;
  • Handling of sensitive workpieces (such as sheets of glass) without additional control functions to prevent damage, since the plunger ensures soft placement;
  • For use under rough operating conditions;
  • For handling tasks with very dynamic motion and short cycle times;

2. Benefits

  • Maintenance free with extremely long operating lifetime;
  • Guarantees soft placement on sensitive workpieces;
  • Available for a wide range of applications and for all standard suction cups;

3. Structure
Maintenance Free Vacuum Cup Fittings , Threaded Spring Plunger For Heavy Duty Occasions

  • Spring plunger consisting of a high strength rod made of galvanized steel, guide sleeve (3) and upper (2) and lower (5) damping springs;
  • The vacuum channel at the upper end of the Plunger is provided with an internal thread connection (1);
  • Thread for suction cup is always a external thread (6);
  • For models with anti-rotation function, the stainless steel rod and bearing sleeve adopt matching planar structure;
  • Two lock nuts for attachment (4);

4. Technology Data:

Type Spring load rate Spring pretension Spring force Vertical load Horizontal
load		 Weight
【N/mm】 【N】 【N】 【N】 【N】 【g】
MTA-HD G1/4-AG 25 0.711 8.95 17.8 2400 800 185
MTA-HD G1/4-AG 25 VG 0.711 8.95 17.8 2400 800 185
MTA-HD G1/4-AG 50 0.262 14.1 20.6 2400 490 210
MTA-HD G1/4-AG 50 VG 0.262 14.1 20.6 2400 490 210
MTA-HD G3/8-AG 25 3.828 25.65 73.5 4800 1870 495
MTA-HD G3/8-AG 25 VG 3.828 25.65 73.5 4800 1870 495
MTA-HD G3/8-AG 50 1.810 3.95 49.2 4800 1200 540
MTA-HD G3/8-AG 50 VG 1.810 3.95 49.2 4800 1200 540
MTA-HD G3/8-AG 90 1.072 24.38 75.3 4800 730 645
MTA-HD G3/8-AG 90 VG 1.072 24.38 75.3 4800 730 645
MTA-HD G1/2-AG 25 3.828 25.65 73.5 4900 1870 493
MTA-HD G1/2-AG 25 VG 3.828 25.65 73.5 4900 1870 495
MTA-HD G1/2-AG 50 1.810 3.95 49.2 4900 1200 539
MTA-HD G1/2-AG 50 VG 1.810 3.95 49.5 4900 1200 540
MTA-HD G1/2-AG 90 1.072 24.38 75.3 4900 730 645
MTA-HD G1/2-AG 90 VG 1.072 24.38 75.3 4900 730 645
***Note:HD Heavy Duty AG External Thread VG with Anti-rotation Function
