Vacuum Suction Cup Plunger , Heavy Duty Stainless Steel Spring Plunger MTA-HD
Vacuum Suction Cup Plunger , Heavy Duty Stainless Steel Spring Plunger MTA-HD
Specifications
Brand Name :
AMILA
Model Number :
Spring Buffer Strut MTA-HD
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Material :
Stainless steel and brass
Connection :
G1/4'' to G1/2''
Buffer stroke :
25 to 90mm
Highlight 1 :
Suitable for heavy-duty occasions
Highlight 2 :
Integrated Vacuum Import
Description

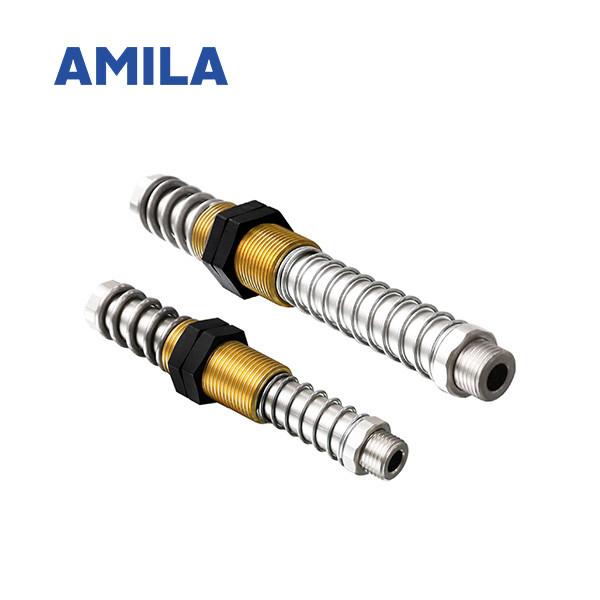

Vacuum Cup Fittings Spring Buffer Strut MTA-HD Stainless Steel With Brass

1. Introduction

  • Spring plunger with two damping springs for handling of workpieces with differing heights, such as curved metal sheets,etc.

  • Handle pressure sensitive workpieces (such as glass) to ensure flexible contact.

  • For use under rough operating conditions;

  • It is suitable for occasions with short working period and fast transportation speed.

2. Structure
Vacuum Suction Cup Plunger , Heavy Duty Stainless Steel Spring Plunger MTA-HD

  • Spring plunger consisting of a high strength rod made of galvanized steel, guide sleeve (3) and upper (2) and lower (5) damping springs;
  • The vacuum channel at the upper end of the Plunger is provided with an internal thread connection (1);
  • Thread for suction cup is always a external thread (6);
  • For models with anti-rotation function, the stainless steel rod and bearing sleeve adopt matching planar structure;
  • Two lock nuts for attachment (4);

3. Technology Data:

TypeSpring load rateSpring pretensionSpring forceVertical loadHorizontal
load		Weight
【N/mm】【N】【N】【N】【N】【g】
MTA-HD G1/4-AG 250.7118.9517.82400800185
MTA-HD G1/4-AG 25 VG0.7118.9517.82400800185
MTA-HD G1/4-AG 500.26214.120.62400490210
MTA-HD G1/4-AG 50 VG0.26214.120.62400490210
MTA-HD G3/8-AG 253.82825.6573.548001870495
MTA-HD G3/8-AG 25 VG3.82825.6573.548001870495
MTA-HD G3/8-AG 501.8103.9549.248001200540
MTA-HD G3/8-AG 50 VG1.8103.9549.248001200540
MTA-HD G3/8-AG 901.07224.3875.34800730645
MTA-HD G3/8-AG 90 VG1.07224.3875.34800730645
MTA-HD G1/2-AG 253.82825.6573.549001870493
MTA-HD G1/2-AG 25 VG3.82825.6573.549001870495
MTA-HD G1/2-AG 501.8103.9549.249001200539
MTA-HD G1/2-AG 50 VG1.8103.9549.549001200540
MTA-HD G1/2-AG 901.07224.3875.34900730645
MTA-HD G1/2-AG 90 VG1.07224.3875.34900730645
***Note:HD Heavy Duty AG External Thread VG with Anti-rotation Function
