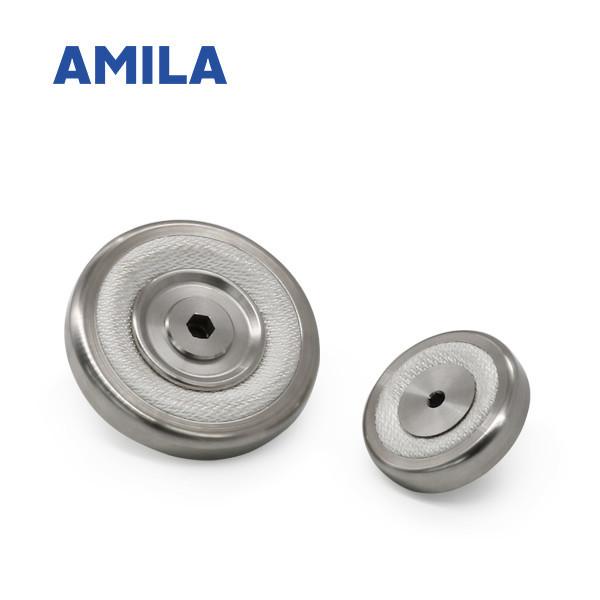

90mm - 190mm Suction Area Stainless Steel Suction Cup High Temperature Resistant MW-HT
90mm - 190mm Suction Area Stainless Steel Suction Cup High Temperature Resistant MW-HT
90mm - 190mm Suction Area Stainless Steel Suction Cup High Temperature Resistant MW-HT
90mm - 190mm Suction Area Stainless Steel Suction Cup High Temperature Resistant MW-HT
Specifications
Brand Name :
AMILA
Model Number :
Suction Cups for High-Temperature MW-HT
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Keyword :
Vacuum Suction Cups
Suction area :
90mm to 190mm
Material :
Stainless Steel
Maximum temperature resistance :
600℃
Highlight 1 :
Wear-resistant
Highlight 2 :
Maximum temperature resistance:600℃
Description

Vacuum Suction Cups Special For High-Temperature Stainless Steel MW-HT

1. Introduction and applicaton

  • For handling of workpieces with smooth surfaces
  • Usage in manufacturing of float glass or in tempering processes in the glass industry
  • Hot forming in the metal industry
  • Maximum temperature resistance:600℃
  • Handling of workpieces with uneven surfaces (optimal adaptation due to smooth sealing lip)

2. Benefits

  • For use with large, heavy but also sensitive workpieces；
  • Suitable for workpieces with flat and smooth surface；
  • High suction force and damping effect during placement on workpiece；
  • No permanent deformation or breakage of sensitive workpieces；

3. Technology data:

Type Suction force Volume Min. curve radius Pressure =-0.7 bar Weight
[N] [cm3] [mm](convex) Required suction 【I/min】 [g]
MW-HT 35 BL G1/8-IG 47 4 90 55 225
MW-HT 60 BL G1/4-IG 130 12 440 78 375
MW-HT 90 BL G1/4-IG 320 25 1060 100 675
MW-HT 140 BL G3/8-IG 740 50 1700 120 1390

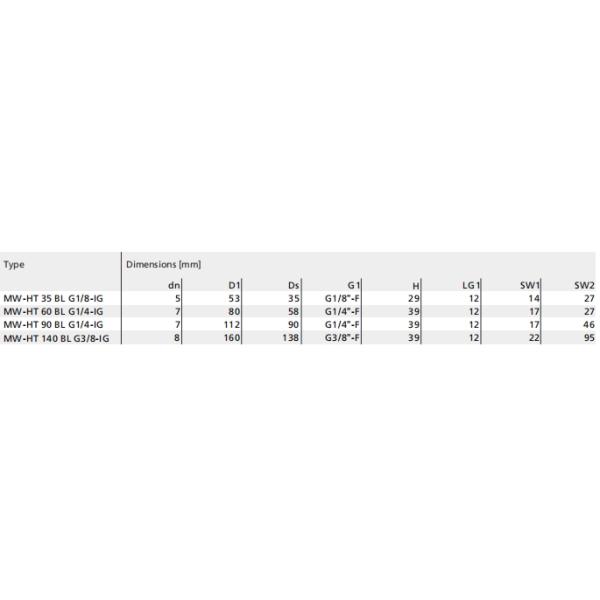

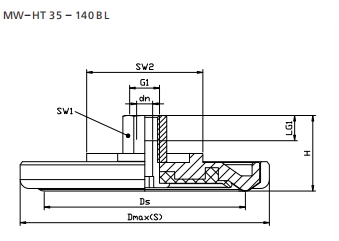

4. Design data:

90mm - 190mm Suction Area Stainless Steel Suction Cup High Temperature Resistant MW-HT

90mm - 190mm Suction Area Stainless Steel Suction Cup High Temperature Resistant MW-HT

Suction Cups for High-Temperature MW-HT.pdf
