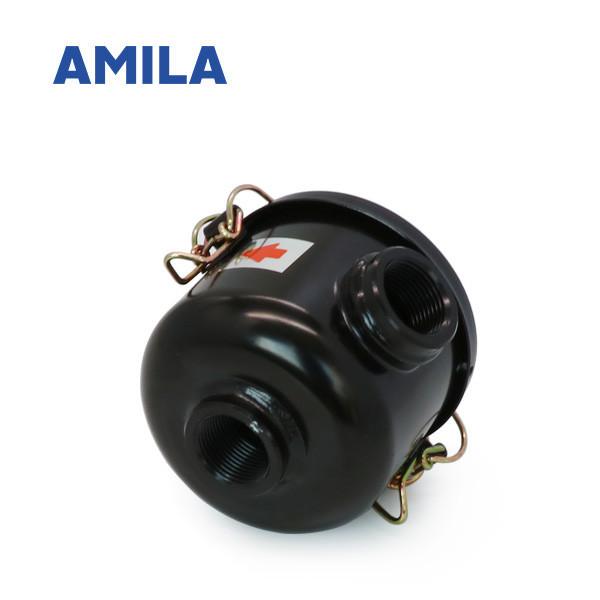

Stretch Metal Shell Suction Pump Filter For Industrial Applications
Stretch Metal Shell Suction Pump Filter For Industrial Applications
Specifications
Brand Name :
AMILA
Model Number :
MTF
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Depending on the order quantity
Delivery Time :
Negotiatable
Packaging Details :
Carton package/Wooden cases
Name :
Vacuum Filters
Connection thread :
G1/2''and G2
Material :
Steel Structure
Appearance :
stretch metal shell
Apply :
For industrial applications
Through gas temperature :
-15 to 90 ℃
Description

Vacuum Filters MTF Steel Structure With Seamless stretch metal shell

1. Introduction and application

It is widely used in vacuum systems for industrial applications to effectively prevent solid particles or dust from being sucked into vacuum pumps or systems, reducing the wear injury, improving operation reliability of pump , extending the pump‘s life, and effectively protecting the components of vacuum systems. (such as vacuum valves, vacuum meters,etc.)

It is suitable for heavy load requirements for industrial application as steel structure extraordinary sturdy and durable. And seamlessly stretched metal shell with copper welded joint, high air tightness, large volumetric space, easy to clean and replace filter element,The quick import and export by threaded connection and the special nozzle can be matched according to customer's requirements with O-ring seal, we'll configurate paper filter if the maximum vacuum value less than 1Pa standard, the filtration precision reaches 99% (10 micron particles). Passing gas temperature: -15 to 90 degrees.

2. Features

  • To filter dust and other small particles from the vacuum flow.
  • Reduces the risk of operation breakdown or stoppage in the pump.
  • Replaceable filter element.
  • Available with special filter element with increased filter area.

3. Technical Data

Stretch Metal Shell Suction Pump Filter For Industrial Applications

Type Dimensions[mm]
*A(Inch) *B(Inch) C D E F Weight [kg]
MTF002 G1/2" G1/2" Φ101 90 53 70 1
MTF002-1 G3/4" G3/4" Φ101 90 53 70 1
MTF004 G1 1/4" G1 1/4" Φ146 110 70 75 1.4
MTF003 G1 1/4" G1 1/4" Φ185 170 115 130 2.3
MTF006 G2" G2" Φ222 258 125 240 6.9

***notes:Dimension A.B is pipe thread G, NP in U.S.and BSP in U.K.

Vacuum Filters MTF.pdf
