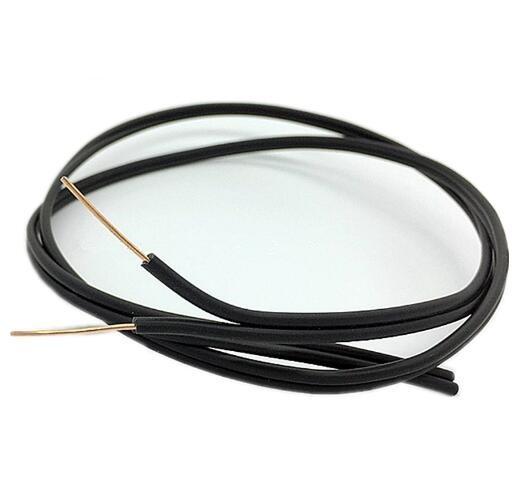

2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
Specifications
Brand Name :
WRC-Outdoor telephone cable 2 core drop wire 100% copper overhead telephone cable
Model Number :
Outdoor telephone cable 2 core drop wire 100% copper overhead telephone cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
3000m
Price :
USD0.072-USD0.20 per meter
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Delivery Time :
100000000m per month
Packaging Details :
Export Carton Packing
Conductor :
Copper wire or tin-plated copper wire standed
conductor diameter :
0.50mm±0.005mm
Jacket :
PVC&LSOH
Pairs :
2/4/6/8/10/20/50 or as per your request
Operating temperature :
-20°C to +60°C
application :
telecommunications
Color :
white , gray, black or optional
Description

Outdoor telephone cable 2 core drop wire 100% copper overhead telephone cable

Description:
Suitable for installation of industrial and domestic utilisation on telecoomunications and information processing systems in French, in dry and moist operating areas of buildings. Its production is according to NFC C 93-529 for SYT1 series and NFC 93-526/527/528 for PTT series.

Features
1. Conductor: 0. 5mm, 0. 6mm, 0. 8mm or 0. 9mm bare/ tinned copper wire
2. PE/PVC insulation
3. PVC/LSOH jacket
4. Shielded or unshielded
5. From 1 pair to 224 pairs
6. Coils or wooden drums packing
Specification:
• Conductor: 0.25sqmm to 4.0sqmm, bare copper ,tinned copper or CCA material
• Jacket: PVC
• Color: transparent, red/black, white and any color
• Nominal Voltage:220V
• Temperature Range: -10°C to + 80°C

Item 5m RJ11 CCS telephone cable
Conductor Material CU,CCA,CCS
Conductor Diameter 0.40mm / 0.45mm / 0.50mm or as request
Pair Insulation PE or PVC
Number of Twisted Pair 2 core cable
Shielding UTP: Unshield
STP/FTP : Mylar+AL Foil+Drain
Armoured
Jelly Filled As your request
Rip Cord Yes
Outer Jacket PVC / PE / LSZH
Jacket Color White,Black, Gray or as request
Installation Temperature 0°C to +60°C
Operating temperature -20°C to +75°C
Certificate CE,ROHS,SGS
Application Telecom wiring system


2 Core Drop Wire Outdoor Overhead Telephone Copper Cable

2 Core Drop Wire Outdoor Overhead Telephone Copper Cable

2 Core Drop Wire Outdoor Overhead Telephone Copper Cable

Electrical Characteristic

Frequency (MHz) IL-Max (dB/100m) NEXT Min(dB/100m) PSNEXT Min(dB/100m) ELFEXT Min(dB/100m)

RL-Min(dB)
1 2.6 41 41 39 12
4 5.6 32 32 27 12
10 9.7 26 26 19 12
16 13.1 23 23 15 10

Packing

Packing detail 100m/roll, 200m/roll, 300m/roll,500m/roll or as request
Inner Package Wooden reel, plastic reel, and paper reel available
Outer Package Carton box, pull out box, pallet available.
Shipping time After receving the deposit 7-10 days
mode of transport Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way

2 Core Drop Wire Outdoor Overhead Telephone Copper Cable
