GYTS Armored Fiber Optic Cable
GYTS Armored Fiber Optic Cable
GYTS Armored Fiber Optic Cable
GYTS Armored Fiber Optic Cable
GYTS Armored Fiber Optic Cable
GYTS Armored Fiber Optic Cable
GYTS Armored Fiber Optic Cable
GYTS Armored Fiber Optic Cable
Specifications
Brand Name :
WRC
Model Number :
Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
5km
Price :
USD0.55-USD14/Km
Payment Terms :
Western Union, MoneyGram, Western Union
Supply Ability :
500Km per day
Delivery Time :
5-25days
Packaging Details :
Standard Export Packing
Application :
Telecommunication,Duct,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
≥ 10,2,4
Type :
Single Mode g652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-144 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC,PVC outer sheath
Product name :
stranded loose tube armored cable,Outdoor Optic Fiber Cable
Length :
2km or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Name :
Outdoor armor fiber optic cable
Oem :
Available
Installation :
self- supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey
Description

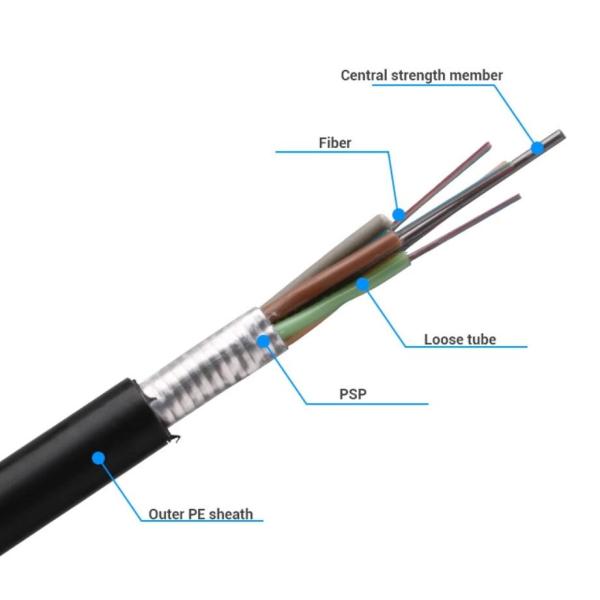

Description: Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable

1.The fibers is 250µm, are positioned in a loose tube made of a high modulus plastic . The tubes are filled with a water-resistant filling compound.

2.A steel wire, sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Technical properties
Item Name
GYTS Fiber Optic Cable
Place of Origin
Wuhan,China
Model Number
GYTS
Brand Name
WRC
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-288 cores
Strength Member
Central Steel Wire/Metal
Material of Jacket
Black Polyethylene (PE)
Cable Structure
Stranded Loose Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial

Drawings Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable
GYTS Armored Fiber Optic Cable

GYTS Armored Fiber Optic Cable
