Specifications
Brand Name :
Weiroct
Model Number :
FTTx
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1KM
Price :
USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 Kilometre / Month
Delivery Time :
5-7 Days
Packaging Details :
2KM/Roll/Carton Box
Type :
Optical Fiber Cable
No.of Fiber :
24
Use :
FTTx Solutions
Single-mode Fiber :
G652D,G657A1,G657A2
Application :
FTTH, FTTx
Operate Temperature :
-40℃- +70℃
Product Name :
Fiber optic cable 48 96 244Core ADSS G652D 100m to 800m span fiber optic cable
Wavelength :
1310/1550nm
Description

Fiber optic cable 48 96 244Core ADSS G652D 100m to 800m span fiber optic cable

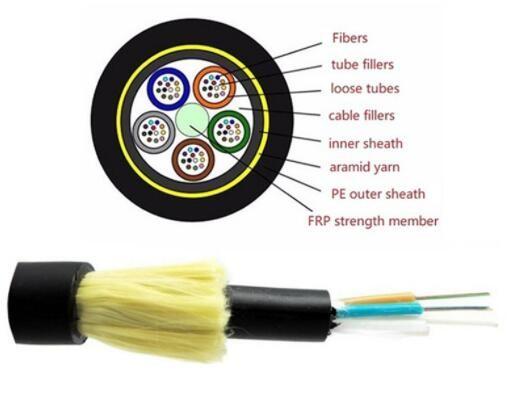

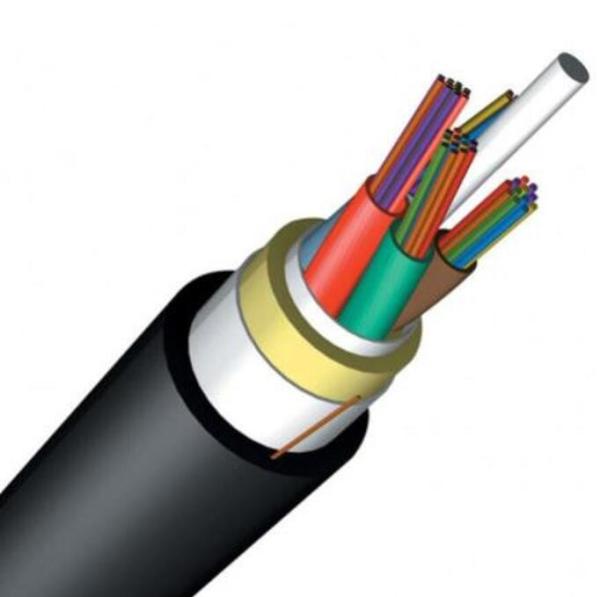

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Applicable fields:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods
High-voltage area, Aerial

Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.

Fiber count
2-288 cores
Out sheath
Black Polyethylene (PE)
Support
FTTH FTTB FTTX Network
Application
Outdoor Aerial
Installation tensile
25KN
Certification
ISO9001/CE/RoHS
Standard
IEC 6079-1;IEEE 1222-2004
Color
Deafult / OEM

Optical Characteristics:
Fiber Type
G.652
G.655
50/125^m
62.5/125^m
Attenuation
(+20X)
850 nm
<3.0 dB/km
<3.3 dB/km
1300 nm
<1.0 dB/km
<1.0 dB/km
1310 nm
<0.36 dB/km
<0.40 dB/km
1550 nm
<0.22 dB/km
<0.23 dB/km
Bandwidth
850 nm

>500 MHz-km
>200 Mhz-km
1300 nm
>500 MHz-km
>500 Mhz-km
Numerical Aperture
0.200±0.015 NA
0.275±0.015 NA
Cable Cut-off Wavelength λcc
<1260 nm
<1450 nm


Cable Parameters

ItemsSpecifications
Fiber Count2~24
Colored Coating FiberDimension250µm±15µm
ColorBlue, Orange, Green, Brown, Gray, White
Loose TubeDimension2.10mm±0.05mm
MaterialPBT
ColorNatural
Strength MemberDiameter1.0mm
MaterialSteel
Outer JacketDimension8.0mm±0.1mm
MaterialPE
ColorBlack


Mechanical and Environmental Characteristics

ItemsUniteSpecifications
Tensio (Long Term)N600
Tension (Short Term)N1500
Crush (Long Term)N/10cm300
Crush (Short Term)N/10cm1000
Min. Bend Radius (Dynamic)mm20D
Min. Bend Radius (Static)mm10D
Installation Temperature℃-20~+60
Operating Temperature℃-40~+70
Storage Temperature℃-40~+70


48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable
48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable
48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable
48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable
48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable

Application
48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable
48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable

48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable

Packing
48 96 244 Core 100m To 800m ADSS G652D Fiber Optic Cable
