GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
GYXTW G652D 2 4 6 8 16 24 Armoured Aerial Fiber Optic Cable
Specifications
Brand Name :
WRC 2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw g652d Single Mode Fiber Optic Cable
Model Number :
2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw g652d Single Mode Fiber Optic Cable
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5.0km
Price :
USD85-USD105/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,24
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-24 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC
Product name :
Single Mode Outdoor Armoured GYXTW 2 / 4 / 6 / 8 / 12 Core Fiber Optic Cable
Length :
2km , or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Name :
Single Mode Outdoor Armoured GYXTW G657A Fiber Optical Cable
Oem :
Available
Installation :
self- supporting Aerial,aerial,Aerial & Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: 2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw g652d Single Mode Fiber Optic Cable

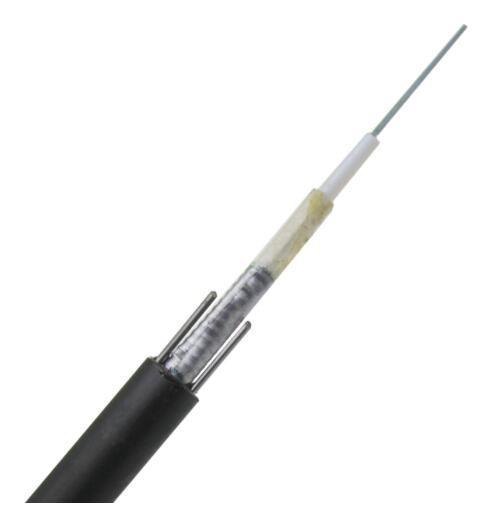

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.

Characteristics of 2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw g652d Single Mode Fiber Optic Cable

• Material of loose tube has good mechanical properties and temperature characteristics

• Material of loose tube has good hydrolysis resistance and high strength

• The tube is filled with special filler to provide critical protection for the fiber

• Good lateral pressure resistance and softness

• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables

• The two parallel steel wires provides enough tensile strength

• Small diameter, light weight, easy for laying

Structure and Technical specifications of 2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw g652d Single Mode Fiber Optic Cable
Type Attenuation(+20℃) Bandwidth Numerical aperture
850nm 1300nm 1310nm 1550nm 850nm 1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ---
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ---
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA

Model

Fiber

count

 Tube count

Filling

rope count

 Weight
(kg/km)

Tension

Long/Short term
(N)
GYXS/GYXTW-2~12Xn 2~12 82 600/1500 300/1000 10D/20D
GYXS/GYXTW-14~24Xn 14~24 127
GYXS/GYXTW-2~12Xn 2~12 124 1000/3000
GYXS/GYXTW-14~24Xn 14~24 147

Cable Parameters of 2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw g652d Single Mode Fiber Optic Cable

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black

Mechanical and Environmental Characteristics of 2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw g652d Single Mode Fiber Optic Cable

Items Unite Specifications
Tensio (Long Term) N 600
Tension (Short Term) N 1500
Crush (Long Term) N/10cm 300
Crush (Short Term) N/10cm 1000
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70

Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before ship out

All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

Drawings of 2 4 6 8 16 24 Aerial Armoured Outdoor Gyxtw g652d Single Mode Fiber Optic Cable
