1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
Specifications
Brand Name :
WRC
Model Number :
GYTA GYTS armored SM fiber Outdoor optical cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000m
Price :
USD0.5-USD1.5/m
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300Km per day
Delivery Time :
5-20 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Aerial,Telecom
Color :
Blue,red,black.
Fiber type :
G652D,single mode or multi mode
Product name :
GYTA GYTS armored single mode leather fiber Outdoor optical cable
Length :
1km,2km or customized length
Jacket material :
PE,LSZH,PVC,TPU,LSZH OR PVC
Name :
Outdoor armor fiber optic cable
Oem :
Available
Installation :
self- supporting Aerial,Aerial & Duct,aerial/tube/duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH
Strength member :
Two steel wire
Description

GYTA GYTS armored single mode leather fiber Outdoor optical cable

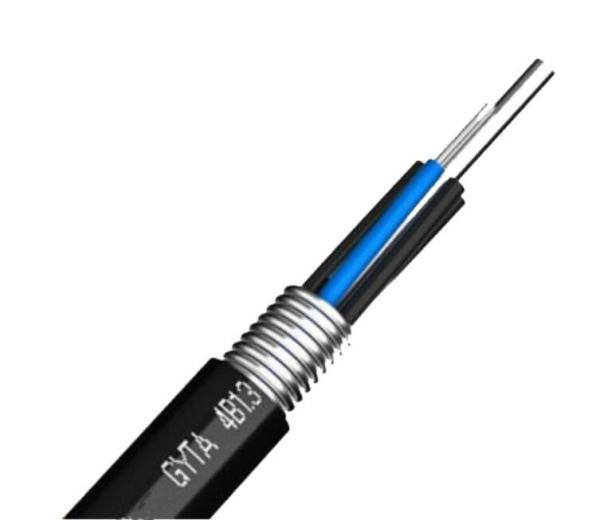

Description:The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Characteristics

  1. Good mechanical and temperature performance
  2. High strength loose tube that is hydrolysis resistant
  3. Special tube filling compound ensure a critical protection of fiber
  4. Special designed compact structure is good at preventing loose tubes from shrinking
  5. PE sheath protects cable from ultraviolet radiation
  6. Crush resitance and flexibility
  7. The following measures are taken to ensure the cable watertight:
  • Steel wire used as the central strength member
  • Loose tube filling compound
  • 100% cable core filling

Technical parameters

Fiber Num
Outer diameter (mm)
Weight (kg/km)
Tensile Stength (N)
Crash Resistance (N/100mm)
Short term
Long term
Short term
Long term
2-30
9.5
86
≥1500
≥600
≥1000
≥300
32-60
10.2
99
62-72
10.9
123
74-84
12.2
148
86-96
12.2
148
98-120
14.0
183
122-144
14.5
220
146-216
16.1
229
218-300
18.5
290

1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable

Application

1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
