Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable
Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable
Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable
Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable
Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable
Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable
Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable
Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable
Specifications
Brand Name :
WRC Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
Model Number :
Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
Certification :
ISO9001,SGS,ROHS
Place of Origin :
China
MOQ :
4.99km
Price :
USD80-USD280/Km
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Duct,Telecom
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
1-288 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC,PVC outer sheath
Product name :
stranded loose tube armored cable,Outdoor Optic Fiber Cable
Length :
2km ,5Km or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Name :
Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
Oem :
Available
Installation :
self- supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable

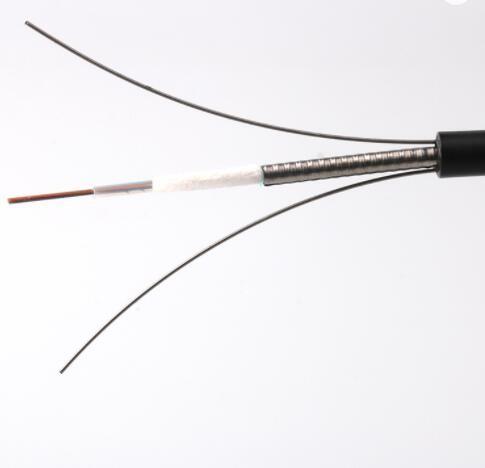

GYXTW central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network and access network, and is especially suitable for the situation where high-density fibers is expected. The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.

Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable Characteristics: Two parallel steel wires ensure tensile strength PSP enhances the cable crush resistance, impact resistance and moisture-proof. Accurate fiber excess length ensures good mechanical and temperature performance. Specially designed compact structure is good at preventing loose tubes from shrinking. High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber. Small diameter, light weight and it is easy to be installed. Crush resistance and flexibility. GYXTW Fiber Optic Cable Application
Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 8.6 95 1500 600 1000 300
14~24 9.0 110 1500 600 1000 300

Parameters of Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable

Fiber Type
G.652
G655
50/125μm
62.5/125μm
Attenuation(+20℃)
@850nm
≤3.0 db/km
≤3.3 db/km
@1300nm
≤1.0 db/km
≤1.0 db/km
@1310nm
≤3.6 db/km
≤0.40 db/km
@1550nm
≤0.22 db/km
≤0.23 db/km
Bandwidth
@850nm
≥500MHz.km
≥200MHz.km
@1300nm
≥500MHz.km
≥500MHz.km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260 nm
≤1450 nm

Payment

T/T , L/C are all offered.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before delivered

All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

Drawings Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
