Specifications
Brand Name :
WRC 2 / 4 / 6 / 8 / 12 / 16 / 24 Core FOC SM MM Outdoor Armoured GYXTW Fiber Optic Cable
Model Number :
2 / 4 / 6 / 8 / 12 / 16 / 24 Core FOC SM MM Outdoor Armoured GYXTW Fiber Optic Cable
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5.0km
Price :
USD80-USD120/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,24,48
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-24 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC
Name :
2 / 4 / 6 / 8 / 12 / 16 / 24 Core FOC SM MM Outdoor Armoured GYXTW Fiber Optic Cable
Length :
2km , or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Oem :
Available
Installation :
self- supporting Aerial,aerial, Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: 2 / 4 / 6 / 8 / 12 / 16 / 24 Core FOC SM MM Outdoor Armoured GYXTW Fiber Optic Cable

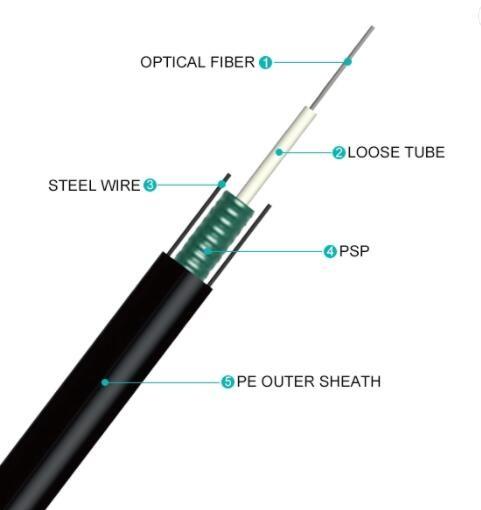

GYXTW single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials
and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials
are distributed into interstices between them to guarantee the compactness and longitudinal water-blockingperformance.

Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.

Characteristics of 2 / 4 / 6 / 8 / 12 / 16 / 24 Core FOC SM MM Outdoor Armoured GYXTW Fiber Optic Cable
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8.Steel wire used as the central strength member

Structure and Technical specifications of 2 / 4 / 6 / 8 / 12 / 16 / 24 Core FOC SM MM Outdoor Armoured GYXTW Fiber Optic Cable

G.652

G.655

50/125μm

62.5/125μm

Attenuation
(+20°C)

@850nm

≤3.0dB/km

≤3.0dB/km

@1300nm

≤1.0 dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.4dB/km

@1550nm

≤0.22dB/km

≤0.23dB/km

Bandwidth
(Class A)

@850nm

≥500MHz/km

≥200MHz/km

@1300nm

≥1000MHz/km

≥600MHz/km

Numerical Aperture

0.2±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm

We produce cables according to the standard as below:
Mechanical Performance
Max Tension PerformanceIEC 60794–1-2-E
Max. Operation TensionIEC 60794–1-2-E1
Crush TestIEC 6079 –1-2-E3
Impact TestIEC 60794–1-2-E4
Repeated BendingIEC 60794–1-2-E6
Torsion TestIEC 60794–1-2-E7
Cable bendIEC 60794–1-2-E11A
Attenuation CoefficientITU-T G.652
Structural TestIEC-60793-1-20
Environmental Performance
Temperature CyclingIEC 60794–1-2-F1
Water PenetrationIEC 60794–1–2-F5B
Filing Compound FlowIEC 60794-1-E14
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

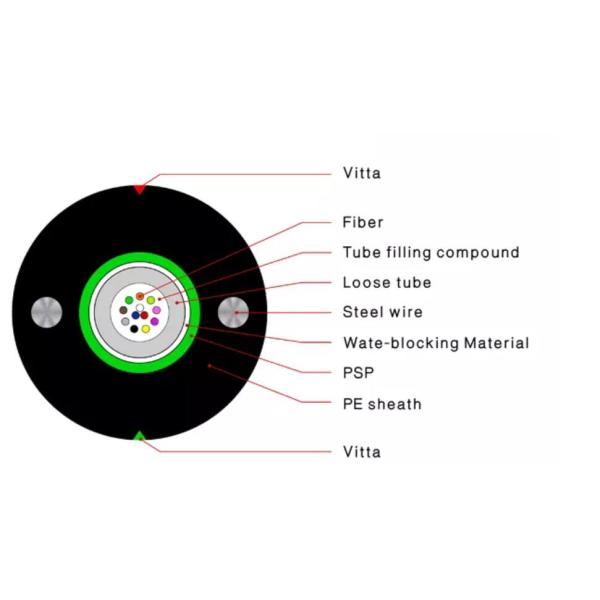

Drawings of 2 / 4 / 6 / 8 / 12 / 16 / 24 Core FOC SM MM Outdoor Armoured GYXTW Fiber Optic Cable

2 4 6 8 12 16 24 Core GYXTW SM MM FOC Armoured Cable
2 4 6 8 12 16 24 Core GYXTW SM MM FOC Armoured Cable
2 4 6 8 12 16 24 Core GYXTW SM MM FOC Armoured Cable
Package of 2 / 4 / 6 / 8 / 12 / 16 / 24 Core FOC SM MM Outdoor Armoured GYXTW Fiber Optic Cable
2 4 6 8 12 16 24 Core GYXTW SM MM FOC Armoured Cable

More products customized

2 4 6 8 12 16 24 Core GYXTW SM MM FOC Armoured Cable
2 4 6 8 12 16 24 Core GYXTW SM MM FOC Armoured Cable
