Specifications
Brand Name :
WRC Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
Model Number :
Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5.0km
Price :
USD400-USD550/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,24,48
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-24 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC
Name :
Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
Length :
2km , or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Oem :
Available
Installation :
self- supporting Aerial,aerial, Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description of Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable

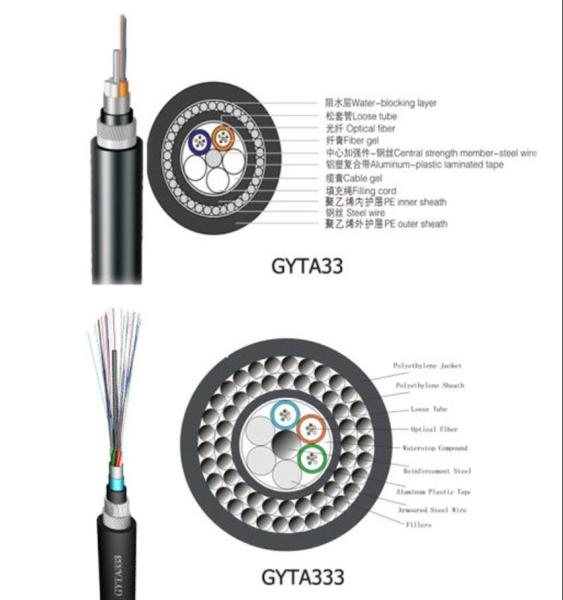

Fiber optic cable GYTA33, 2~72 fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires, pe outer sheath. G652d sm fiber, detailed specification on your request.
Application of Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable
1.Laying modes: direct buried & under-water.
2.Applications: Long-distance communication, local trunk line, catv & computer networks system.

Structure and Technical specifications of Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical CableTechnical
Fiber count 2~30 32~36 38~60 62~72 2~36 38~72
CSM/Steel wire (mm) --/1.5 --/2.0 --/1.8 2.4/1.8 --/2.0 2.4/1.8
Element mumber 5 6 5 6 6 6
Max. cores in tube 6 6 12 12 6 12
Diameter of inner sheath 8.3 8.8 9.1 9.7 10.5 10.5
Steel wire diameter and No. Φ1.0/28 Φ1.0/29 Φ1.0/30 Φ1.0/32 Φ1.5/24 Φ1.5/24
Cable diameter approx (mm) 14.3 14.8 15.1 15.7 17.5 17.5
Weight approx (kg/km) 315 328 .340 360 520 520
Tensile strength (N) Long term 4000 10000
Short term 10000 2000
Crush Resistence(N/100mm) Long term 3000
Short term 5000
Bending Radius (mm) Dynamic ≥30 ×Dia. Of cable
Static ≥15×Dia. Of cable
Operating Temperature (°C) -40°C ~+ 70°C
Application Directly burial and Under water
We produce cables according to the standard as below:
Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14

Cable marking of Submarine Single mode Direct Buried GYTA33 24 48 72 core Fiber Optical Cable

(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;

(4) Factory name;

(5) Date of manufacturing (year);
(6) Other requirements ;

The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
