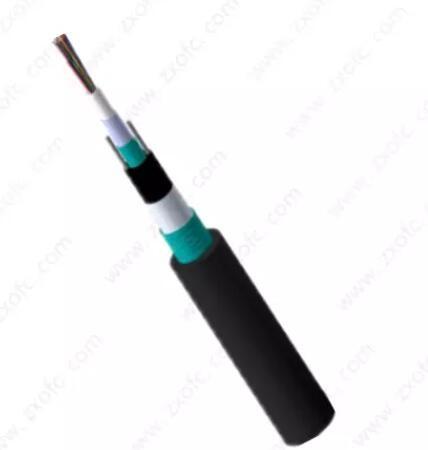

Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Specifications
Brand Name :
Wrc-GYXTW 6/12/24 Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable
Model Number :
GYXTW 6/12/24 Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5.0km
Price :
USD60-USD350/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network,internet,Lan
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,12,24,48,96,128
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-288 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC
Name :
GYXTW 6/12/24 /48Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable
Length :
2km , 5Km, or customized
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Oem :
Available
Installation :
self- supporting Aerial,aerial,Duct,aerial/tube/duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire,Aluminum
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: GYXTW 6/12/24 Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable

"GYXTW 6/12/24 Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable"is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound.

The vinyl sheath is cabled.The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable.

Characteristics of GYXTW 6/12/24 Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable
. Good mechanical and temperature performance
. High strength loose tube that is hydrolysis resistant
. The following measures are taken to ensure the cable watertight:

Structure and Technical specifications of GYXTW 6/12/24 Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable

G.652D Single Mode Optical Fiber (B1.3)
Item
Standard
Unit
Attenuation
1310nm
≤0.35
dB/km
1383nm
≤0.33
dB/km
1550nm
≤0.21
dB/km
1625nm
≤0.24
dB/km
Dispersion
1288nm～1339nm
|D|≤3.4
ps/(nm·km)
1271nm～1360nm
|D|≤5.3
ps/(nm·km)
1550nm
≤17.8
ps/(nm·km)
Zero-dispersion wavelength
1300～1322
(nm)
Zero-dispersion slope
≤0.091
ps/(nm2•km)
PMD
PMD single fiber
≤0.15
ps/√km
PMD Q links
≤0.08
ps/√km
MDF
1310nm
9.2±0.4
um
Cladding diameter
125±1.0
μm
Cladding non-circularity
≤0.8
%
Core-cladding concentricity error
≤0.6
μm
Coating diameter
245±10
μm
Cladding/coating concentricity error
≤10.0
μm
Cut-off wavelength
1.18～1.33
μm
Macrobend attenuation
(ф 50mm, 100 cycles)
1550nm
≤0.05
dB
1625nm
≤0.05
dB
Bending radius
≥5
m
Dynamic fatigue parameters
≥20
nd
Additional Attenuation
at1310nm &
at 1550nm
Temperature cycling test:
(-60℃～85℃, 3 cycles)
≤0.03
dB/km
Water soak test:
(23℃ for 30 days)
≤0.03
dB/km
Damp heat test:
(85℃, 85%RH for 30 days)
≤0.03
dB/km

Thermal aging test

(85℃ for 30 days)
≤0.03
dB/km
Warm water soak test: (60℃ for 15 days)
≤0.03
dB/km
Our advantage:
3.Full compliance with ISO 9001:2008 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions.
7.Response within 24 hours.Advanced production and testing equipment
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
If there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends 5-30 days
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
7. why should you buy from us not from other suppliers?
A .Various products can meet any needs and requirements.
B.One-stop-shopping with better price/more choice/reliable quality/easy payment.
C.Promote and improve the performance of all staff, Quality employees creates quality products.


Drawings of GYXTW 6/12/24 Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable

Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Package of GYXTW 6/12/24 Cores Single Mode Armored Optical Fiber Cable Uni-tube outdoor GYXTW optical cable
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode

More products customized

Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
Uni Tube GYXTW 6 24 Core Armoured Fiber Optic Cable 12 Core Single Mode
