GYTA fiber optic g652 steel central strength member fiber optic cable
GYTA fiber optic g652 steel central strength member fiber optic cable
GYTA fiber optic g652 steel central strength member fiber optic cable
GYTA fiber optic g652 steel central strength member fiber optic cable
GYTA fiber optic g652 steel central strength member fiber optic cable
GYTA fiber optic g652 steel central strength member fiber optic cable
Specifications
Brand Name :
Wrc-GYTA fiber optic g652 steel central strength member fiber optic cable
Model Number :
GYTA fiber optic g652 steel central strength member fiber optic cable
Certification :
ISO9001,SGS,CIQ
Place of Origin :
China
MOQ :
5.0km
Price :
USD60-USD350/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network,internet,Lan
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,12,24,48,96,128,288
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-288 cores
Color :
Black,Blue,Grey,Customized,Green,customized
Jacket :
PE,MDPE,LSZH,PVC
Name :
GYTA fiber optic g652 steel central strength member fiber optic cable
Length :
2km,5Km or customized length
Jacket material :
PE,LSZH,TPU,LSZH or PVC
Oem :
Available
Installation :
self- supporting Aerial,aerial, Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire,Aluminum,or as per requirement
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: GYTA fiber optic g652 steel central strength member fiber optic cable

"GYTA fiber optic g652 steel central strength member fiber optic cable" is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYTA fiber optic cable from 2 fiber cores to 12 fiber cores. Both single mode type and multimode types are available.

2. Features

·The fibers, 260μm, are positioned in a loose tube made of a high modulus plastic.

· The tubes are filled with a water-resistant filling compound.

· The tube is wrapped with a layer of corrugated steel tape longitudinally.

· Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight

Two parallel steel wires are placed at the two sides of the steel tape.

· The cable is completed with PE sheath.

3. Application

Interbuilding voice or data communication backbone.

Installed in duct, underground conduit.


Structure and Technical specifications of GYTA fiber optic g652 steel central strength member fiber optic cable

Cable Parameters
Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 260µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black
Technical Parameter
Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N/100mm) Bending Radius Static/Dynamic (mm)
2~12 10.6 124 1000/3000 1000/3000 10D/20D
14~24 12.0 147 1000/3000 1000/3000 10D/20D

We produce cables according to the standard as below of GYTA fiber optic g652 steel central strength member fiber optic cable
Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14
FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.


Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service

Q3:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.


Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, PayPal, etc.


Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.


Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment.Big order shall be in 7-30 days.


Q7: How will you delivery my goods ?
A7: It will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo.

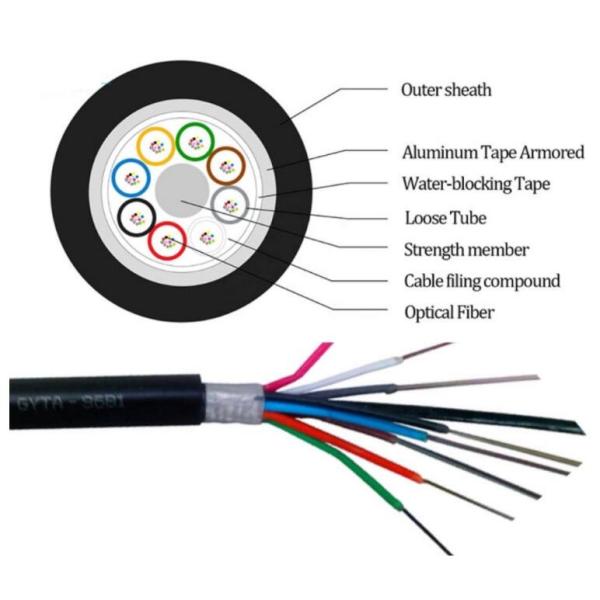

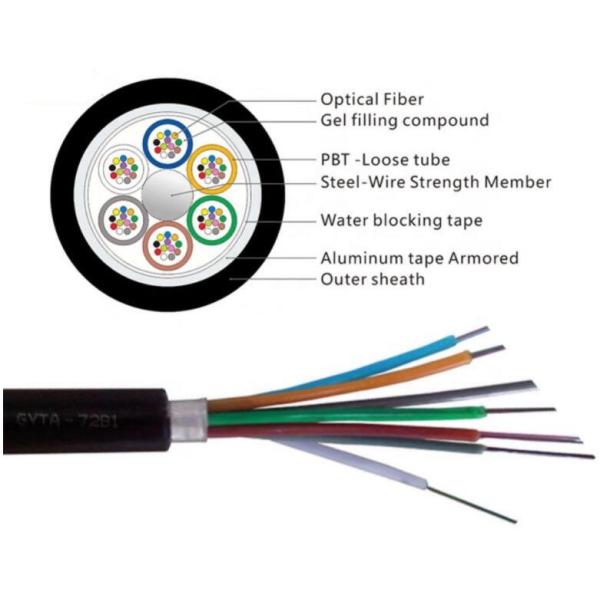

Drawings of GYTA fiber optic g652 steel central strength member fiber optic cable
GYTA fiber optic g652 steel central strength member fiber optic cable

GYTA fiber optic g652 steel central strength member fiber optic cable

Package of GYTA fiber optic g652 steel central strength member fiber optic cable
GYTA fiber optic g652 steel central strength member fiber optic cable

More products customized

GYTA fiber optic g652 steel central strength member fiber optic cable
GYTA fiber optic g652 steel central strength member fiber optic cable
