Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Specifications
Brand Name :
Wrc-Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Model Number :
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Certification :
ISO9001,SGS,CIQ
Place of Origin :
China
MOQ :
5.0km
Price :
USD60-USD350/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network,internet,Lan
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,12,24,48,96,128,288
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-288 cores
Color :
Black,Blue,Grey,Customized,Green,customized
Jacket :
PE,MDPE,LSZH,PVC
Name :
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Length :
2km,5Km or customized length
Jacket material :
PE,LSZH,TPU,LSZH or PVC
Oem :
Available
Installation :
self- supporting Aerial,aerial, Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire,Aluminum,or as per requirement
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores

"Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores" is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYTA fiber optic cable from 2 fiber cores to 12 fiber cores. Both single mode type and multimode types are available.

The fibers of 250um, are positioned in a loose tube made of a high modulus plastics. The tubes are filled with a water-resistant filling compound . A fiber Reinforced Wire locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. Then the cable core is covered with a thin Polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features

1.Good mechanical and temperature performance
2.High strength loose tube
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.100% cable core filling
6. PSP enhancing moisture-proof


Structure and Technical specifications of Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores

G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm

≤3.0 dB/km

≤3.0 dB/km

@1300nm

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

@1550nm

≤0.22 dB/km

≤0.23dB/km

Bandwidth (Class A)

@850nm

≥500 MHz·km

≥200 MHz·km

@1300nm

≥1000 MHz·km

≥600 MHz·km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm

We produce cables according to the standard as below of Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14
FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.


Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service

Q3:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.


Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, PayPal, etc.


Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.


Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment.Big order shall be in 7-30 days.


Q7: How will you delivery my goods ?
A7: It will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo.

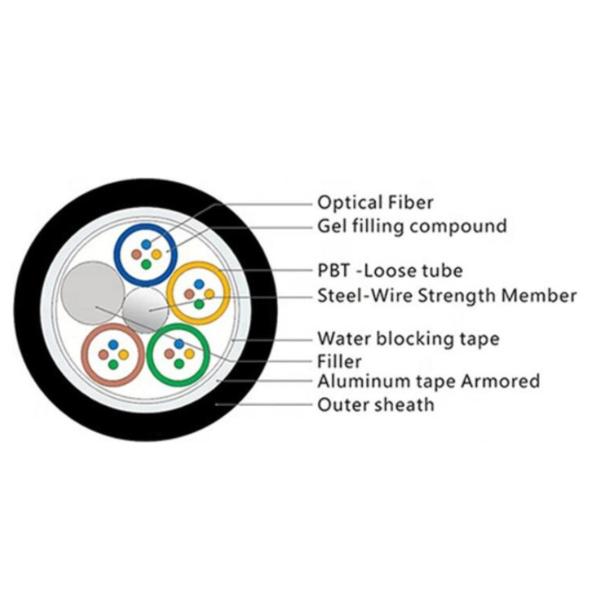

Drawings of Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores

Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores

Package of Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
Aerial/Duct armored GYTA Outdoor Fiber Optic Cable 2-288 cores
