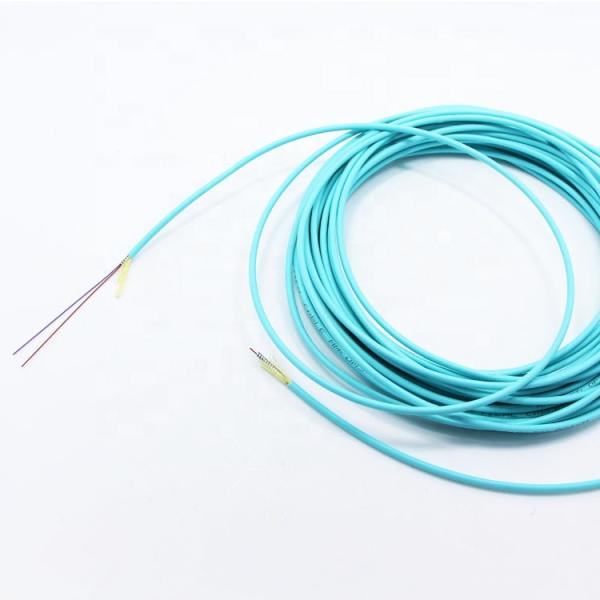

Dual Fiber Steel Tube Aqua Duplex Armored OM3 Indoor Fiber Optic Cable
Dual Fiber Steel Tube Aqua Duplex Armored OM3 Indoor Fiber Optic Cable
Specifications
Brand Name :
Weiroct
Model Number :
GJPFJH
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1KM
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Kilometre / Month
Delivery Time :
5~20 DAYS
Packaging Details :
2KM/Roll/Carton Box
Conductors :
2
Jacket Color :
Aqua
Type :
Single mode
Fiber Type :
OM3
Application :
Telecommunication
Strength Member :
Aramid Yarn
Fiber Count :
2 core
Product Name :
Indoor Fiber Optic Cable
Operating Temperature :
-20℃~+70℃
Usage :
Patchcord, pigtail
Description

Dual Fiber Steel Tube Indoor Duplex Armored OM3 Fiber Optic Cable Aqua Color


Product Description:

The armored cable is a special cable with a stainless steel tube inside the cable which could protect the fiber bite by ant, mouse related rodent animals. This cable could be used as normal electric wire.

Characteristics:

Select quality fiber to ensure excellent transmission performance.

Adopt strict process and raw materials control to guarantee the lifespan of 15 years.

Good uniformity of the diameter of buffer fiber and excellent strip ability.

Good performance of flame-retardant. Small bending radius.

Excellent mechanical and environmental performance.

Colored bare fiber is available.

Application:

Indoor Horizontal and Vertical Wiring

Pigtail of Communication Equipment and Flexible Connection

Fiber Optical Movable Connector

Technical data:

Fiber Type G652D,G655,G656,G657,OM1,OM2,OM3,OM4
Buffered type Tight buffer, Semi-tight buffer, Loose buffer
Coat Material PVC, OFNR,OFNP,LSZH,LSOH,NYLON
OD(um) 600,900
Min Bending Radius Dynamic 20D; Static 10D(expect G657)
Coating color 12 colors available, Both 250um and 900um same colored
Temperature range PVC: -20°C ~+90°C ;LSZH:-20°C ~+70°C

Specification:

Cable Code Fiber Count Cable Size (mm) Cable Weight
(kg/km)

Mini.Bending

Radius (mm)

 Tensile Strength
(N)		 Crush Resistance
(N/100mm)		 Range of Temperature
(℃)
Dynamic Static Short Term Long Term Short Term Long Term
SXC16 1 1.6 2.9 60 30 60 30 500 100 —20~+60
SXC18 1 1.8 3.2 60 30 80 40 500 100
SXC20 1 2.0 3.5 60 30 100 60 500 100
SXC24 1 2.4 5.0 60 30 100 60 500 100
SXC28 1 2.8 5.8 60 30 150 80 500 100
SXC30 1 3.0 6.8 60 30 150 80 500 100
Fiber Type G652D 50/125 62.5/125 G657A1 G657A2 OM3-150 OM3-300 OM4
Jacket Material PVC LSZH TPU
