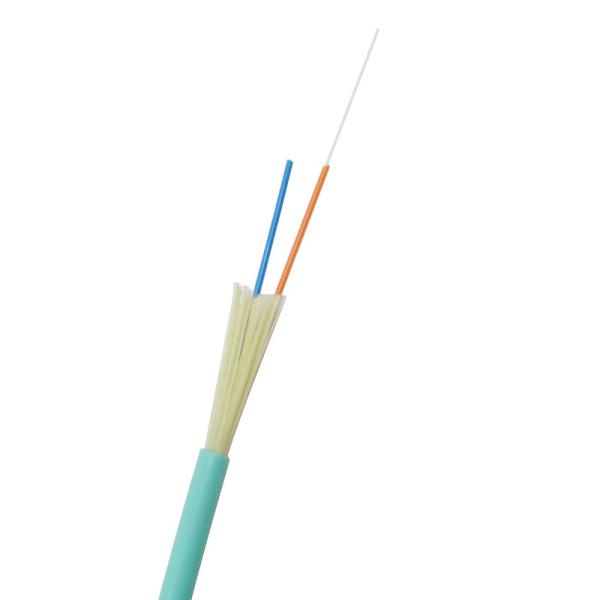

GJFJV OM3 2 Core Indoor Fiber Optic Cable With Aramid Yarn
GJFJV OM3 2 Core Indoor Fiber Optic Cable With Aramid Yarn
GJFJV OM3 2 Core Indoor Fiber Optic Cable With Aramid Yarn
GJFJV OM3 2 Core Indoor Fiber Optic Cable With Aramid Yarn
GJFJV OM3 2 Core Indoor Fiber Optic Cable With Aramid Yarn
GJFJV OM3 2 Core Indoor Fiber Optic Cable With Aramid Yarn
Specifications
Brand Name :
Weiroct
Model Number :
GJFJBV
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1KM
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Kilometre / Month
Delivery Time :
5~20 DAYS
Packaging Details :
2KM/Roll/Carton Box
Conductors :
≥10
Jacket :
LSZH/PVC
Outer Sheath Color :
Aqua
Fiber Type :
OM3
Application :
FTTH FTTB FTTX Network
Strength Member :
Aramid Yarn
Cable Diameter :
3.0mm
Product Name :
Indoor Fiber Optic Cable
Description

2 Core Fiber Optic Cable Indoor OM3 With Aramid Yarn GJFJV

Product Description:

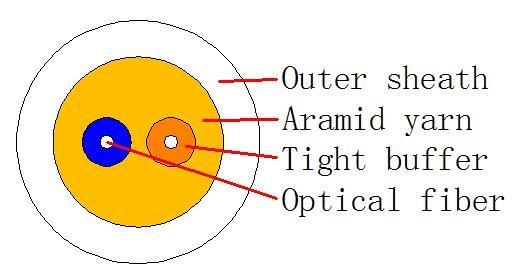

GJFJV Multi-Purpose Distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.

Feature:

1. Excellent stripper ability with tight buffered fiber
2. Excellent flame retardant properties
3. High tensile strength due to aramid strength member
4. Excellent corrosion resistant, waterproof, flame retardant and
5. environmental- friendly properties of the outer sheath

Technical data:
No. of cable
2
Fiber Model
G.657A2
Strength Member
Material
Aramid yarn
Tight buffer
Material
PVC
Diameter(±0.06)mm
0.9
Thickness(±0.03)mm
0.32
Outer Sheath
Material
LSZH
Thickness(±0.03)mm
0.45
Color
white
Cable Diameter(±0.2)mm
3.0
Cable Weight(±2)kg/km
7
Min. bending radius
Without Tension
10×Cable-φ
Under Maximum Tension
20×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-30~+70
Operation
-30~+70
