Specifications
Brand Name :
WRC 2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable
Model Number :
2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable
Certification :
ISO9001,SGS,CIQ
Place of Origin :
China
MOQ :
5.0km
Price :
USD250-USD1150/Km
Payment Terms :
Western Union, MoneyGram, Western Union
Supply Ability :
500Km per day
Delivery Time :
5-30days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Duct,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
≥ 10,2,4
Type :
SM g652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
1-288 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,,PVC outer sheath
Product name :
stranded loose tube armored cable,Outdoor Optic Fiber Cable
Length :
2km , 5Km, or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Name :
2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable
Oem :
Available
Installation :
self- supporting Aerial,aerial,Duct,aerial/tube/duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey
Description

Description: 2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable

GYXTW central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.

Uni-tube gel-filled construction for superior fiber protection.Metallic armor to protect cable from rodent attack and mechanical damage.

Embedded steel wire provide desirable tensile strength and crush resistance.Compact, easy to install.UV and waterproof design

Characteristics of 2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable: Two parallel steel wires ensure tensile strength PSP enhances the cable crush resistance, impact resistance and moisture-proof. Accurate fiber excess length ensures good mechanical and temperature performance. Specially designed compact structure is good at preventing loose tubes from shrinking. High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber. Small diameter, light weight and it is easy to be installed. Crush resistance and flexibility. GYXTW Fiber Optic Cable Application
2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 8.6 95 1500 600 1000 300
14~24 9.0 110 1500 600 1000 300

Payment

T/T , L/C at sight

Shipping & Delivery

We will send the products 5-30 days.

Return and Warranty:

All products have been tested before delivered

All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

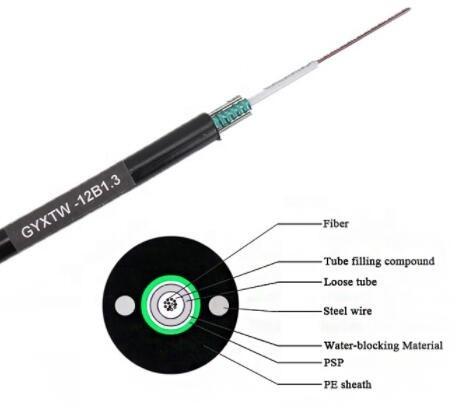

Drawings of 2-12cores GYXTW Fiber Optic Cable outdoor rated fiber optic cable
