GYXTW Uni Tube 8 Core 6 Core Single Mode Armoured Outdoor Fiber Optic Cable
GYXTW Uni Tube 8 Core 6 Core Single Mode Armoured Outdoor Fiber Optic Cable
GYXTW Uni Tube 8 Core 6 Core Single Mode Armoured Outdoor Fiber Optic Cable
GYXTW Uni Tube 8 Core 6 Core Single Mode Armoured Outdoor Fiber Optic Cable
GYXTW Uni Tube 8 Core 6 Core Single Mode Armoured Outdoor Fiber Optic Cable
GYXTW Uni Tube 8 Core 6 Core Single Mode Armoured Outdoor Fiber Optic Cable
GYXTW Uni Tube 8 Core 6 Core Single Mode Armoured Outdoor Fiber Optic Cable
GYXTW Uni Tube 8 Core 6 Core Single Mode Armoured Outdoor Fiber Optic Cable
Specifications
Brand Name :
WRC GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable
Model Number :
GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5.01km
Price :
USD120-USD320/Km
Payment Terms :
Western Union, MoneyGram, D/A, D/P, T/T, L/C
Supply Ability :
501Km per day
Delivery Time :
5-30 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Duct,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,24,48,96
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
0-288 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC,PVC outer sheath
Product name :
stranded loose tube armored cable,Outdoor Optic Fiber Cable
Length :
2km , or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Name :
GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable
Oem :
Available
Installation :
self- supporting Aerial,aerial,Aerial & Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable

Uni-tube gel-filled construction for superior fiber protection.

Metallic armor to protect cable from rodent attack and mechanical damage.

Embedded steel wire provide desirable tensile strength and crush resistance.

Compact, easy to install.

UV and waterproof design

Characteristics of GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable: Two parallel steel wires ensure tensile strength PSP enhances the cable crush resistance, impact resistance and moisture-proof. Accurate fiber excess length ensures good mechanical and temperature performance. Specially designed compact structure is good at preventing loose tubes from shrinking.
Structure and Technical specifications of GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 8.6 95 1500 600 1200 350
14~24 9.0 110 1500 600 1200 350

Parameters of GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable

Fiber Type
G.652
G655
50/125μm
62.5/125μm
Attenuation(+20℃)
@850nm
≤3.0 db/km
≤3.3 db/km
@1300nm
≤1.0 db/km
≤1.0 db/km
@1310nm
≤3.6 db/km
≤0.40 db/km
@1550nm
≤0.22 db/km
≤0.23 db/km
Bandwidth
@850nm
≥500MHz.km
≥200MHz.km
@1300nm
≥500MHz.km
≥500MHz.km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260 nm
≤1450 nm

Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before ship out

All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

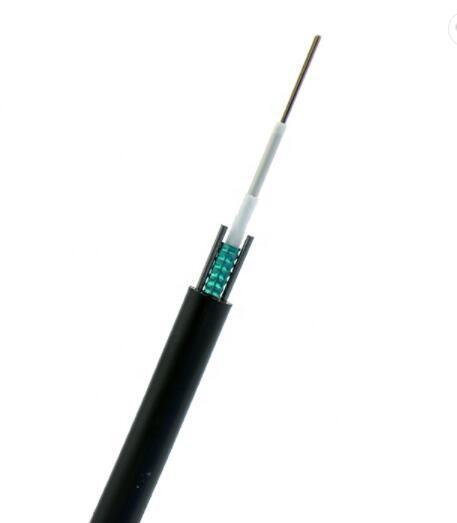

Drawings of GYXTW Uni-tube Armored single mode 6 core 8 core fiber optic cable
