High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
Specifications
Brand Name :
Wrc-High quality high strength GYTA fiber optic cable Burial fiber optic cable
Model Number :
High quality high strength GYTA fiber optic cable Burial fiber optic cable
Certification :
ISO9001,SGS,CIQ
Place of Origin :
China
MOQ :
5.0km
Price :
USD60-USD350/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network,internet,Lan
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,12,24,48,96,128,288
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-288 cores
Color :
Black,Blue,Grey,Customized,Green,customized
Jacket :
PE,MDPE,LSZH,PVC
Name :
High quality high strength GYTA fiber optic cable Burial fiber optic cable
Length :
2km,5Km or customized length
Jacket material :
PE,LSZH,TPU,LSZH or PVC
Oem :
Available
Installation :
self- supporting Aerial,aerial, Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire,Aluminum,or as per requirement
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: High quality high strength GYTA fiber optic cable Burial fiber optic cable

"High quality high strength GYTA fiber optic cable Burial fiber optic cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound.

Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.

Characteristics of High quality high strength GYTA fiber optic cable Burial fiber optic cable

· It has good mechanical and temperature properties.

· The loose tube material itself has good hydrolysis resistance and high strength.

· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.

· Double coated steel strip (PSP) improves the moisture resistance of the cable.

· Two parallel wires ensure the tensile strength of the cable.

· Small diameter, light weight and easy to lay.
Structure and Technical specifications of High quality high strength GYTA fiber optic cable Burial fiber optic cable

Item Name
GYTA Fiber Optic Cable
Place of Origin
Wuhan or Shanghia,China
Model Number
GYTA
Brand Name
WRC
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-288 cores
Strength Member
Central Steel Wire/Metal
Material of Jacket
Black Polyethylene (PE)
Cable Structure
Stranded Loose Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

 Max Fiber
Per Tube		 Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 9.7 76 6 5 1500 600 1000 300
32~48 10.7 90 8 6 1500 600 1000 300
50~72 11.6 110 12 6 2000 600 1000 300
74~96 13.0 135 12 8 2000 600 1000 300
98~144 15.1 190 12 12 2000 600 1000 300

Note : This datasheet can only be a reference, not a supplement to the contract,final subject to Contract.

We produce cables according to the standard as below of High quality high strength GYTA fiber optic cable Burial fiber optic cable
Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14
FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.


Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service

Q3:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.


Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, PayPal, etc.


Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.


Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment.Big order shall be in 7-30 days.


Q7: How will you delivery my goods ?
A7: It will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo.

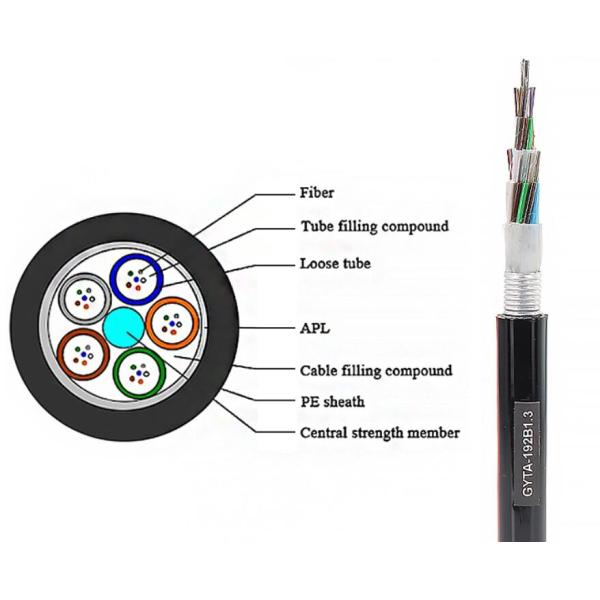

Drawings of High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable

Package of High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable

More products customized

High quality high strength GYTA fiber optic cable Burial fiber optic cable
High quality high strength GYTA fiber optic cable Burial fiber optic cable
