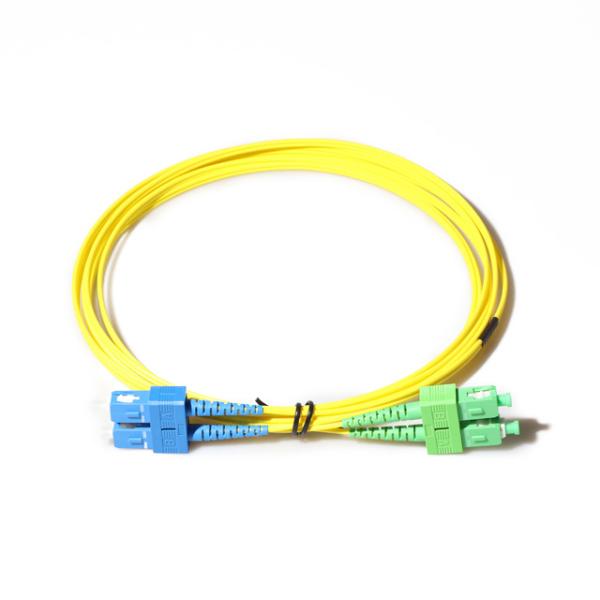

3.5mm 3.0mm 2.4mm G657A1 SC APC FOC Fiber Optic Cable Patch Cord
3.5mm 3.0mm 2.4mm G657A1 SC APC FOC Fiber Optic Cable Patch Cord
3.5mm 3.0mm 2.4mm G657A1 SC APC FOC Fiber Optic Cable Patch Cord
3.5mm 3.0mm 2.4mm G657A1 SC APC FOC Fiber Optic Cable Patch Cord
3.5mm 3.0mm 2.4mm G657A1 SC APC FOC Fiber Optic Cable Patch Cord
3.5mm 3.0mm 2.4mm G657A1 SC APC FOC Fiber Optic Cable Patch Cord
3.5mm 3.0mm 2.4mm G657A1 SC APC FOC Fiber Optic Cable Patch Cord
3.5mm 3.0mm 2.4mm G657A1 SC APC FOC Fiber Optic Cable Patch Cord
Specifications
Brand Name :
Weiroct
Model Number :
SC
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1KM
Price :
USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 Kilometre / Month
Delivery Time :
5-7 Days
Packaging Details :
2KM/Roll/Carton Box
Type :
Optical Fiber Cable
No.of Fiber :
24
Use :
FTTx Solutions
Single-mode Fiber :
G652D,G657A1,G657A2
Application :
FTTH, FTTx
Operate Temperature :
-40℃- +70℃
Product Name :
1.25G/2.5G GPON ONU SFP Stick TX1310/RX1550
Wavelength :
1310/1550nm
Fiber Type :
Singlemode 9/125
Description

FOC Ivory White 3.5mm 3.0mm 2.4mm G657A1 Sc/Apc Fiber Optic Patchcord

Description

GJYWFJH Indoor/Outdoor Cable used as the optical transmission medium with 0.9mm subcable, a layer of

aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with

outside jacket. Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

Mode
Single mode
Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
850/1310nm
Durability(500 Matings)
≤0.2dB
Operating Temperature
-40℃~+60℃
Storage Temperature
-45℃~+85℃
Fire Resistant
IEC 60794-2-30
Standards-Compliant
ROHS,IEC and GR-326
Fiber type
Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2
(4)9/125-G657B3
Multimode:
(5)50/125-OM2
(6)62.5/125-OM1
(7)50/125-OM3
(8)50/125-OM4
(9)50/125-OM5
Fiber Brand
YOFC, Corning, Sumitomo, Fujikura
Connector
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type
Simplex ,Duplex
Cable diameter
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket
PVC, OFNR, LSZH, OFNP
length(M)
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
