All Dielectric 48 Core 100m Span Central Tube ADSS OFC Cable
All Dielectric 48 Core 100m Span Central Tube ADSS OFC Cable
All Dielectric 48 Core 100m Span Central Tube ADSS OFC Cable
All Dielectric 48 Core 100m Span Central Tube ADSS OFC Cable
All Dielectric 48 Core 100m Span Central Tube ADSS OFC Cable
All Dielectric 48 Core 100m Span Central Tube ADSS OFC Cable
Specifications
Brand Name :
Weiroct
Model Number :
ADSS-48
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1KM
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Kilometre / Month
Delivery Time :
10~20 DAYS
Packaging Details :

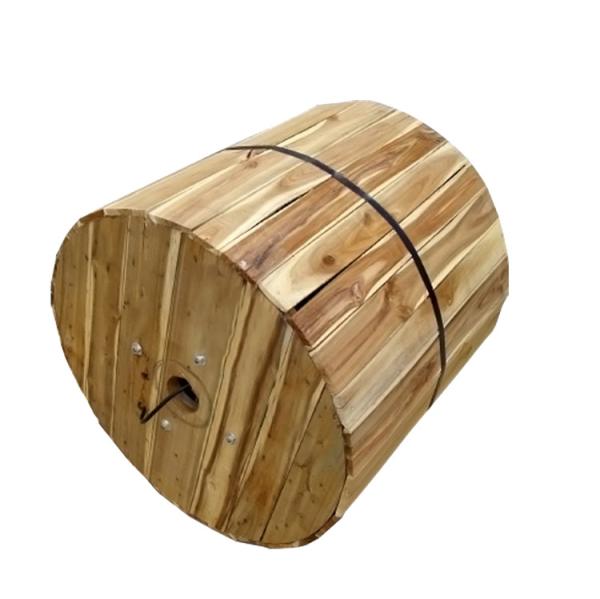

3KM/Drum
Conductors :
≥10
Type :
Cat 1
Color :
Black
Fiber Count :
12 Cores
Strength Member :
FRP
Fiber Type :
SM G652D
Product Name :
6-144 Core Optical Fiber Cable
Jacket :
PE
OEM :
Available
Package :
3km/4km/5km Per Drum
Description

All Dielectric 48 Core Optical Fiber Cable 100m Span Central Tube ADSS OFC Cable

Product Description:

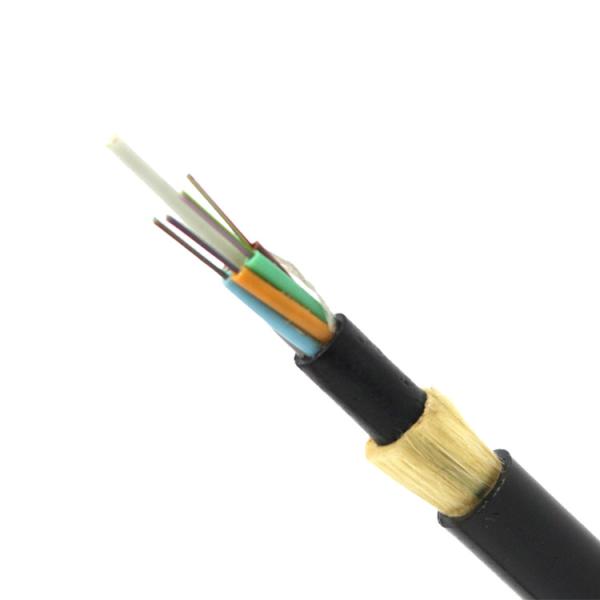

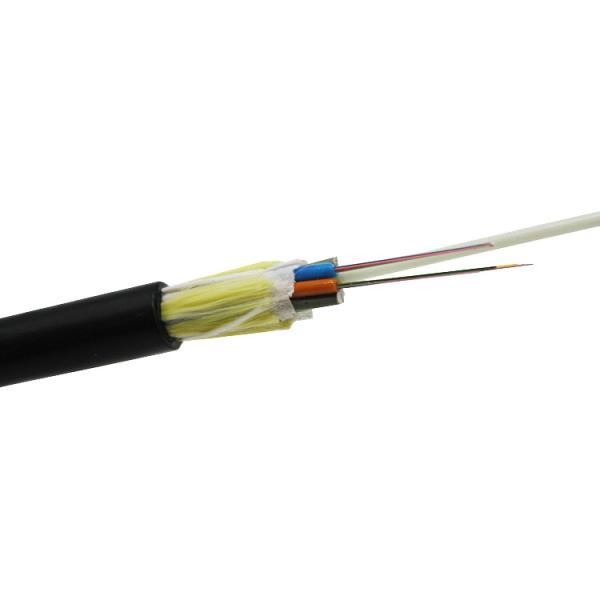

ADSS cable is aerial optical fiber cable with loose tubes stranded inside.

Fibers are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound.

The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

ADSS cable Technical Parameters:

Model Number ADSS
Type Coaxial
Number of Conductors ≥ 10
Application Aerial fiber cable
Function Delivery signal light
Certification ADSS pass ISO9001,UL, TIL, CE
Sheath material PE or AT for adss fiber optic cable
Fiber type OS1/OS2,OM1,OM2,OM3,OM4
Length per roll 2km/3km/4km/5kmADSS fiber
Fiber count 2core to 288 core
Strength member FRP

ADSS fiber optic cable Features:

  • Can be installed without shutting off the power
  • Excellent AT performance,The Maximum inductive at the operating point of AT sheath can reach 25 KV
  • Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
  • Large Span lengths and the largest span is over 1000m
  • Accurate control on Aramid application greatly improving the strength of cables
  • Accurate fiber excess length and stranding pitch to ensure the good performance of tensile strength and the temperature
  • The design life span is over 30 years

All Dielectric 48 Core 100m Span Central Tube ADSS OFC Cable

All Dielectric 48 Core 100m Span Central Tube ADSS OFC Cable
