GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode
GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode
GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode
GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode
GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode
GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode
Specifications
Brand Name :
Weiroct
Model Number :
GJFJV
Certification :
ISO-9001
Place of Origin :
Hubei, China
MOQ :
1KM
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Kilometre / Month
Delivery Time :
5~20 DAYS
Packaging Details :
2KM/Roll/Carton Box
Single-mode Fiber :
G657A1/ G657A2
Fiber Count :
24 Cores
FRP :
0.5mm
Insulation Material :
PE
Tight Buffer :
6pcs
Aramid Yarn :
12 Standard Yarn
OD :
10-10.5mm
Application :
Aerial and Duct
Fiber Type :
OM3
Package :
2KM/Roll
Conductors :
≥10
Description

GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Singlemode Multimode Fiber Optic Cable

Product Description:

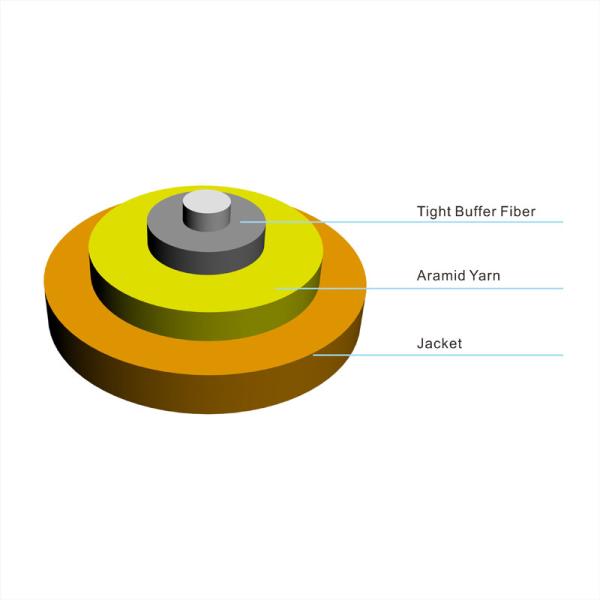

GJFJV Simplex cable use single 900um or 600um tight buffer fiber as optical commucation medium , the tight buffer fiber wrapped
with a layer of aramid yarn as strength member uinits, and the cable is completed with a PVC or LSZH (low
smoke ,Zero halogen,Flame-retardant ) jacket.

Products Features:

Small diameter, light weight,flame retardant,excellent strippability

Low-attenuation, High flexibility

Cable diameter

MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm

G652d optic fiber Mechanical Characteristics

Tensile Strength Long Term 80N 60 50
Short Term 150N 120 100
Crush Resistance Long Term 100N/100mm 100N/100mm 100N/100mm
Short Term 500N/100mm 500N/100mm 500N/100mm
Bending Radius Dynamic 20XD 20XD 20XD
Static 10XD 10XD 10XD

GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode

GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode MultimodeGJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode

GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode
