FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable
Specifications
Brand Name :
WRC
Model Number :
GJXH
Certification :
ISO9001
Place of Origin :
China
MOQ :
1KM
Price :
USD0.41-USD15/Km
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 Kilometre / Month
Delivery Time :
5~20 DAYS

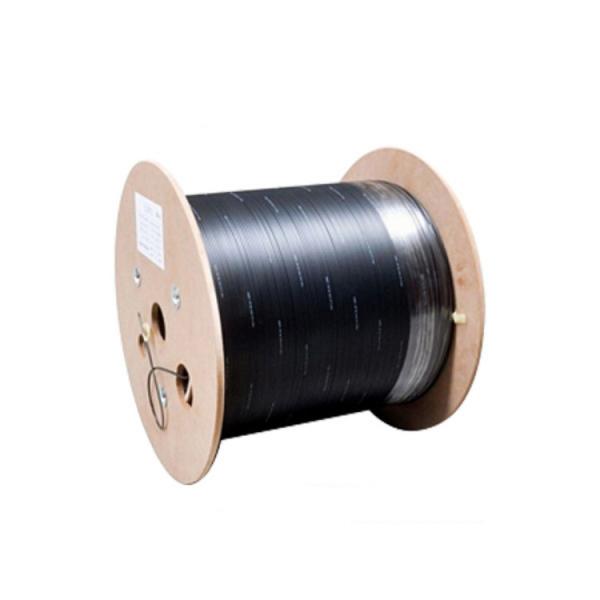

Packaging Details :
2KM/Roll/Carton Box
Jacket :
LSZH/PVC/HDPE
Outer Sheath Color :
Printed
Fiber Type :
G.657A1, G.657A2
Application :
Telecommunication
Strength Member :
Aramid Yarn/Metal wire
Core :
1/2
Product Name :
FTTH with LSZH jacket G657A fiber optic cable GJXH/GJXFH flat cable
Description

FTTH With LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable

Product Description:

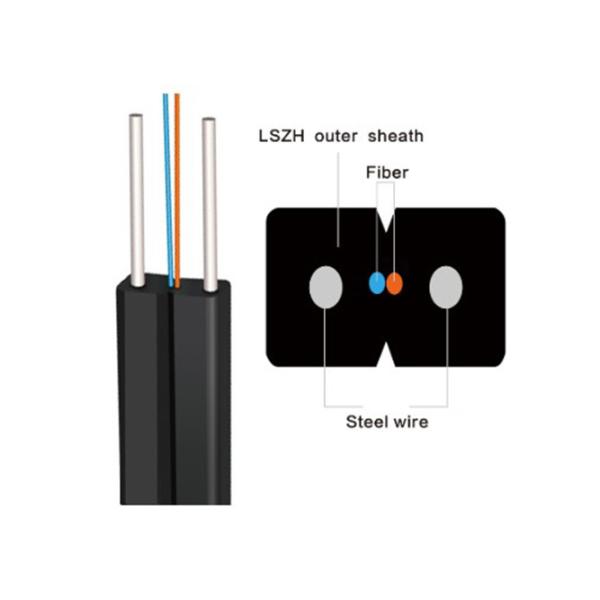

• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics

• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure

• single metallic strength member makes optical cable having good tensile performance

• Optical cable has simple structure, light weight and strong practicability

• unique groove design, Easy peeled off and splice, simplify the installation and maintenance

• Low smoke halogen-free flame-retardant sheath, pro-environment

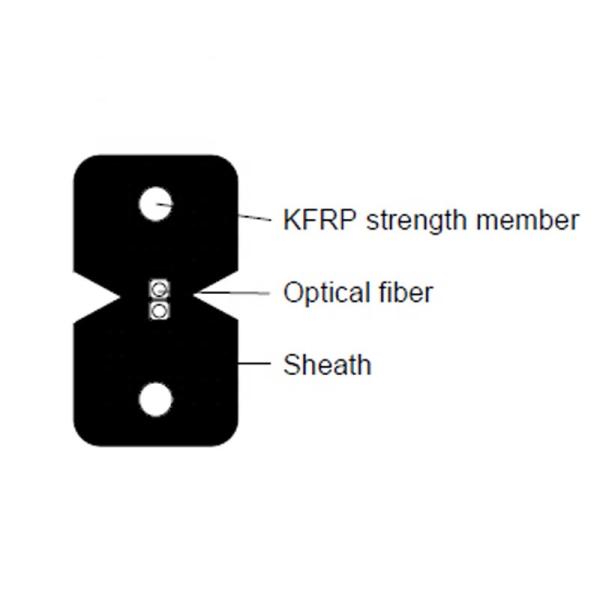

Characteristics:

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
  • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
  • Simple structure, light weight and high practicability.
  • Novel flute design, easily strip and splice, simplify the installation and maintenance.
  • Low smoke, zero halogen and flame retardant sheath.

Technical Parameters:

Fiber Count Cable Size (mm) Cable Weight (kg/km) Bending Radius (mm) Tensile Strength (N) Cruch Resistance (N/100mm)
Static Dynamic Long term Short term Long term Short term
2 (2.0±0.1) x (3.0±0.1) 10 15D 30D 40 80 500 1000

Optical Characteristics:

G.652 G.657
Attenuation(+20°C) @850nm
@1300nm
@1310nm ≤0.45dB/km ≤0.45dB/km
@1550nm ≤0.30dB/km ≤0.30dB/km
Bandwidth (Class A) @850nm
@1300nm
Numerical Aperture
Cable Cut-off Wavelength λcc ≤ 1260nm ≤ 1260nm

Transport/Storage/Operating Temperature: -20°C ~ +60°C

FAQ

1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.

2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.

3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
